Voxelized Foot Bone

A Region on a voxel-based mesh with uniform hexahedrons should be created with uniform=True to enhance performance.

This example requires external packages.

pip install pypardiso

Static Scene

Interactive Scene

import numpy as np
import pypardiso
import pyvista as pv
from pyvista import examples

import felupe as fem

surface = examples.download_foot_bones()
voxels = pv.voxelize(surface, density=surface.length / 50)

mesh = fem.Mesh(
    points=voxels.points,
    cells=voxels.cell_connectivity.reshape(-1, 8),
    cell_type="hexahedron",
).rotate(90, axis=0)
mesh.points *= 25
mesh.update(points=np.vstack([mesh.points, [0, 0, mesh.z.min() - 2]]))

region = fem.RegionHexahedron(mesh, uniform=True)
field = fem.FieldContainer([fem.Field(region, dim=3)])
boundaries = {"fixed": fem.Boundary(field[0], fx=lambda x: x <= -110)}

umat = fem.LinearElastic(E=1000, nu=0.3)
solid = fem.SolidBody(umat, field)
gravity = fem.SolidBodyGravity(field, gravity=[0, 0, -7e-2])
bottom = fem.MultiPointContact(
    field, points=np.arange(mesh.npoints), centerpoint=-1, skip=(1, 1, 0)
)

step = fem.Step(items=[solid, gravity, bottom], boundaries=boundaries)
job = fem.Job(steps=[step]).evaluate(solver=pypardiso.spsolve, parallel=True)

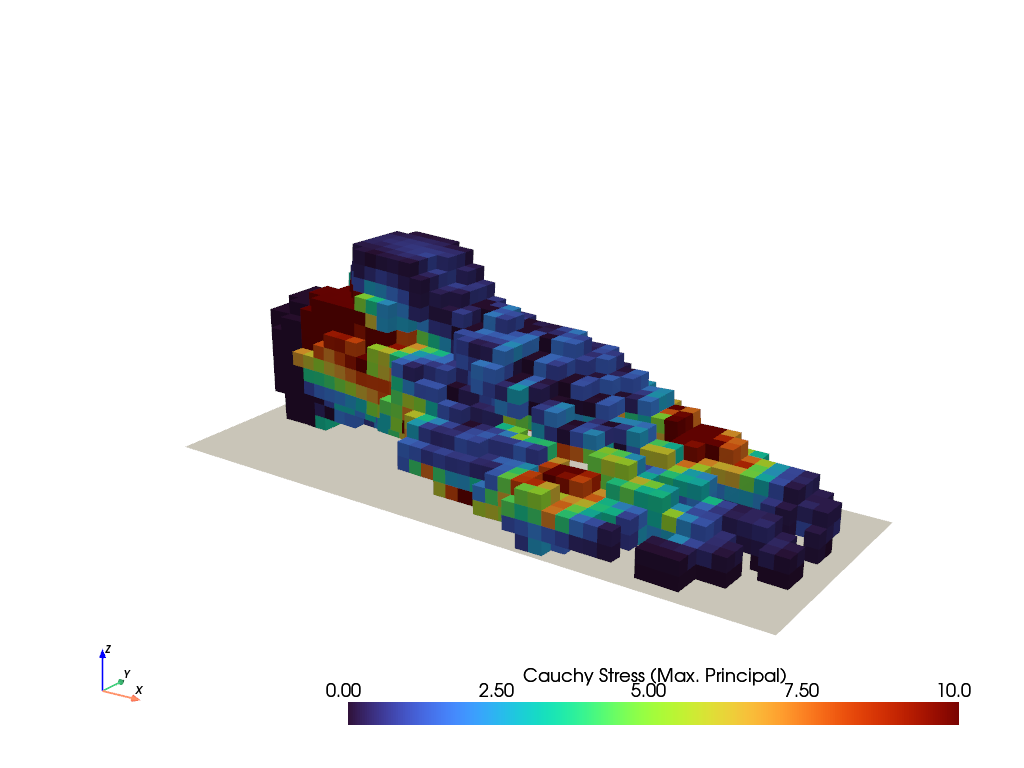

plotter = solid.plot(
    "Principal Values of Cauchy Stress",
    show_edges=False,
    show_undeformed=False,
    clim=[0, 10],
)
bottom.plot(plotter=plotter, color="white", opacity=1).show()
