# Rubber Spring#

A rubber-metal spring with a simplified frictionless contact.

read a mesh file

define a nearly-incompressible isotropic hyperelastic solid body

setup a simplified frictionless elastic-to-rigid contact interaction

export and plot the log. strain

A meshed three-dimensional geometry of a rubber-metal spring is loaded by an external axial and lateral displacement. Simplified elastic-to-rigid contact definitions simulate the end stops caused by steel plates at the bottom and the top in direction \(z\).

```
import felupe as fem
import numpy as np
# import pypardiso # see docs on external solvers
mesh = fem.mesh.read("mesh.vtk")[0]
X, Y, Z = mesh.points.T
```

A numeric hexahedron-region created on the mesh in combination with a vector-valued displacement field represents the rubber volume. Imported meshes may contain cells with negative volumes. This is fixed as proposed in the warning message. The Boundary conditions for the \(y\)-symmetry plane as well as the fixed faces on the bottom and the top of the solid are generated on the displacement field.

```
region = fem.RegionHexahedron(mesh)
mesh = mesh.flip(np.any(region.dV < 0, axis=0))
region = fem.RegionHexahedron(mesh)
field = fem.FieldsMixed(region, n=1)
boundaries = fem.dof.symmetry(field[0], axes=(0, 1, 0))
boundaries["fixed"] = fem.Boundary(field[0], fz=Z.max())
boundaries["move-x"] = fem.Boundary(field[0], fz=Z.min(), skip=(0, 1, 1))
boundaries["move-y"] = fem.Boundary(field[0], fz=Z.min(), skip=(1, 0, 1))
boundaries["move-z"] = fem.Boundary(field[0], fz=Z.min(), skip=(1, 1, 0))
```

The material behavior is defined through a built-in hyperelastic isotropic Neo-Hookean material formulation. A solid body, suitable for nearly-incompressible material formulations, applies the material formulation on the displacement field.

```
umat = fem.NeoHooke(mu=1)
solid = fem.SolidBodyNearlyIncompressible(umat, field, bulk=5000)
```

The simplified elastic-to-rigid contact is defined by a multi-point constraint-like formulation which is only active in compression. First, the points on the surface of the solid body are determined. Then, the center (control) point is defined by one of the mesh points on the end faces in direction \(z\).

```
surface = np.unique(fem.RegionHexahedronBoundary(mesh).mesh_faces().cells)
mask = np.isin(np.arange(mesh.npoints), surface)
points = np.where(mask)[0]
bottom = fem.MultiPointContact(
field,
points=points,
centerpoint=np.where(Z==Z.min())[0][0],
skip=(1, 1, 0),
)
top = fem.MultiPointContact(
field,
points=points,
centerpoint=np.where(Z==Z.max())[0][0],
skip=(1, 1, 0),
)
```

The max. principal value of the logarithmic strain, projected to mesh points, will be added to the result file.

```
def log_strain(substep=None, field=None):
"Project the max. principal log. strain from quadrature- to mesh-points."
F = field.extract()[0]
C = fem.math.dot(fem.math.transpose(F), F)
strain = np.log(fem.math.eigvalsh(C)[-1]) / 2
return fem.project(strain, region)
```

The simulation model is now ready to be solved. The results are saved within a XDMF-file, where additional point-data is passed to the `point_data`

argument.

```
table1 = fem.math.linsteps([0, 1], num=10)
table2 = fem.math.linsteps([0, 1], num=10)
axial = fem.Step(
items=[solid, top, bottom], #, top, bottom
ramp={boundaries["move-z"]: 40 * table1},
boundaries=boundaries
)
lateral = fem.Step(
items=[solid, top, bottom],
ramp={boundaries["move-x"]: 40 * table2},
boundaries=boundaries
)
job = fem.CharacteristicCurve(steps=[axial, lateral], boundary=boundaries["move-z"])
job.evaluate(
filename="result.xdmf",
kwargs={"parallel": True},
# solver=pypardiso.spsolve, # see docs on external solvers
point_data = {"Logarithmic Strain (Max. Principal)": log_strain}
)

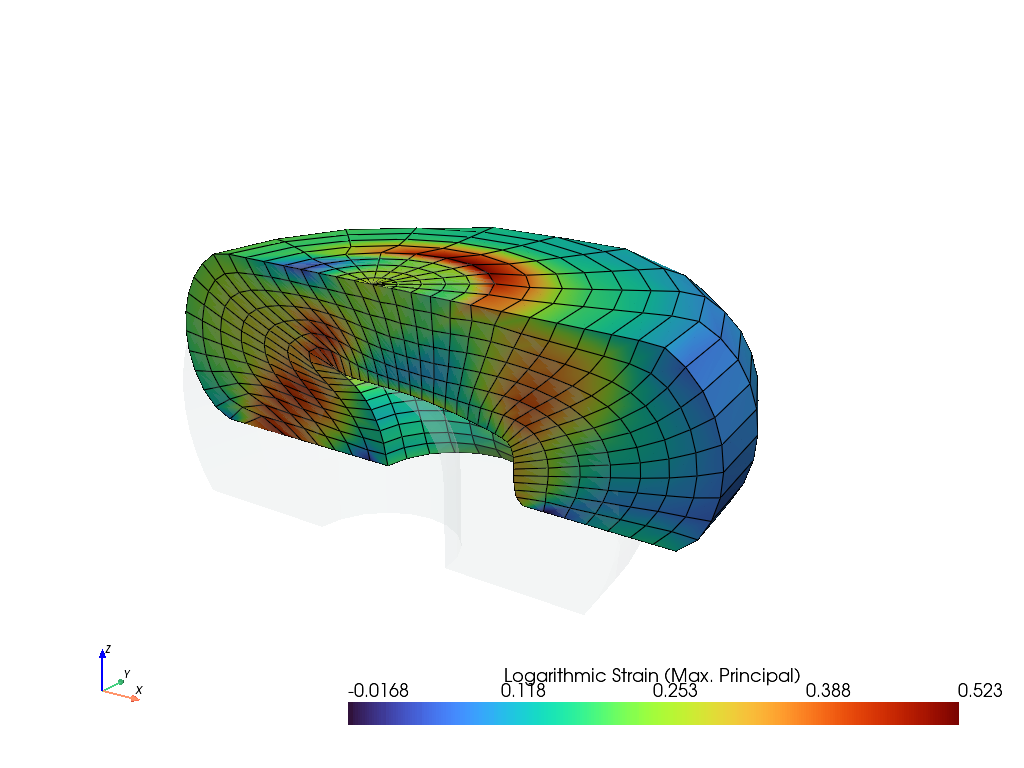

# evaluate the log. strain on points and view the strain distribution on the
# deformed mesh
fem.View(
field=field,
point_data={"Logarithmic Strain (Max. Principal)": log_strain(field)},
).plot("Logarithmic Strain (Max. Principal)").show()
```

The axial-compressive and lateral-shear force-displacement curves are obtained from the characteristic-curve job. The force is multiplied by two due to the fact that only one half of the geometry is simulated.

```
fig, ax = job.plot(
xlabel="Displacement $d_Z$ in mm $\longrightarrow$",
ylabel="Normal Force $F_Z$ in kN $\longrightarrow$",
xaxis=2,
yaxis=2,
yscale=2 / 1000,
)
```

The shear lateral force-displacement curve is again obtained from the characteristic-curve job.

```
fig, ax = job.plot(
xlabel="Displacement $d_X$ in mm $\longrightarrow$",
ylabel="Normal Force $F_X$ in kN $\longrightarrow$",
xaxis=0,
yaxis=0,
yscale=2 / 1000,
)
```
