Mesh#
This module contains meshingrelated classes and functions. Standalone meshtools (functions) are also available as meshmethods.
Core

A mesh with points, cells and optional a specified cell type.

A container which operates on a list of meshes with identical dimensions.
Geometries

A mesh with a single vertex point located at

A 1dmesh with lines between

A rectangular 2dmesh with quads between

A cube shaped 3dmesh with hexahedrons between

A grid shaped 3dmesh with hexahedrons.

A circular shaped 2dmesh with quads and

A triangular shaped 2dmesh with quads and

A rectangular 2dmesh with an arbitrarrorder Lagrange quad between

A rectangular 2dmesh with an arbitrarrorder Lagrange hexahedron between
Tools

Expand a 0dPoint to a 1dLine, a 1dLine to a 2dQuad or a 2dQuad to a 3dHexahedron Mesh.

Translate (move) a Mesh along a given axis.

Rotate a Mesh.

Revolve a 0dPoint to a 1dLine, a 1dLine to 2dQuad or a 2dQuad to a 3dHexahedron Mesh.

Merge duplicate points and update cells of a Mesh.

Mirror points by plane normal and ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.

Merge duplicate points and update cells of a Mesh.

Merge duplicate cells of a Mesh.

Join a sequence of meshes with identical cell types.

Add simple rubberrunouts for realistic rubbermetal structures.

Triangulate a quad or a hex mesh.

Convert a mesh to a given order.

Collect all unique edges, calculate and return midpoints on edges as well as the additional cells array.

Collect all unique faces, calculate and return midpoints on faces as well as the additional cells array.

Collect all volumes, calculate and return midpoints on volumes as well as the additional cells array.

Add midpoints on edges for given points and cells and update cell_type accordingly.

Add midpoints on faces for given points and cells and update cell_type accordingly.

Add midpoints on volumes for given points and cells and update cell_type accordingly.

Ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.

Fill a 2dQuad Mesh between two 1dLine Meshes, embedded in 2dspace, or a 3dHexahedron Mesh between two 2dQuad Meshes, embedded in 3dspace, by expansion.

Create a new dual mesh with given points per cell.

Stack cellblocks from meshes with identical pointsarray and celltypes.

Read a mesh from a file using
Detailed API Reference
 class felupe.Mesh(points, cells, cell_type=None)[source]#
A mesh with points, cells and optional a specified cell type.
 Parameters:
points (ndarray) – Point coordinates.
cells (ndarray) – Pointconnectivity of cells.
cell_type (str or None, optional) – An optional string in VTKconvention that specifies the cell type (default is None). Necessary when a mesh is saved to a file.
 points#
Point coordinates.
 Type:
ndarray
 cells#
Pointconnectivity of cells.
 Type:
ndarray
 points_with_cells#
Array with points connected to cells.
 Type:
ndarray
 points_without_cells#
Array with points not connected to cells.
 Type:
ndarray
 cells_per_point#
Array which counts connected cells per point. Used for averaging results.
 Type:
ndarray
Examples
>>> import numpy as np >>> import felupe as fem >>> >>> points = np.array( >>> [[0.0, 0.0], [0.5, 0.1], [1.0, 0.2], [0.0, 1.0], [0.5, 0.9], [1.0, 0.8]] >>> ) >>> cells = np.array([[0, 1, 4, 3], [1, 2, 5, 4]]) >>> mesh = fem.Mesh(points, cells, cell_type="quad") >>> >>> mesh.plot().show()
See also
felupe.MeshContainer
A container which operates on a list of meshes with identical dimensions.
felupe.Rectangle
A rectangular 2dmesh with quads between
a
andb
withn
points per axis.felupe.Cube
A cube shaped 3dmesh with hexahedrons between
a
andb
withn
points per axis.felupe.Grid
A grid shaped 3dmesh with hexahedrons. Basically a wrapper for
numpy.meshgrid()
with defaultindexing="ij"
.felupe.Circle
A circular shaped 2dmesh with quads and
n
points on the circumferential edge of a 45degree section. 90degreesections
are placed at given angles in degree.felupe.mesh.Triangle
A triangular shaped 2dmesh with quads and
n
points at the edges of the three subquadrilaterals.
 add_midpoints_edges(cell_type=None)[source]#
Add midpoints on edges for given points and cells and update cell_type accordingly.
 Parameters:
cell_type (str or None, optional) – A string in VTKconvention that specifies the new cell type (default is None). If None, the cell type is chosen automatically.
 Returns:
A new mesh with inserted midpoints on cell edges.
 Return type:
Examples
Convert a mesh of hexahedrons to quadratic hexahedrons by inserting midpoints on the cell edges.
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=6) >>> mesh_with_midpoints_edges = mesh.add_midpoints_edges() >>> >>> mesh_with_midpoints_edges.plot( >>> plotter=mesh.plot(), style="points", color="black" >>> ).show()
>>> mesh_with_midpoints_edges <felupe Mesh object> Number of points: 96 Number of cells: quad8: 25
See also
felupe.mesh.add_midpoints_edges
Add midpoints on edges for given points and cells and update cell_type accordingly.
 add_midpoints_faces(cell_type=None)[source]#
Add midpoints on faces for given points and cells and update cell_type accordingly.
 Parameters:
cell_type (str or None, optional) – A string in VTKconvention that specifies the new cell type (default is None). If None, the cell type is chosen automatically.
 Returns:
A new mesh with inserted midpoints on cell faces.
 Return type:
Examples
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=6) >>> mesh_with_midpoints_faces = mesh.add_midpoints_faces(cell_type="quad") >>> >>> mesh_with_midpoints_faces.plot( >>> plotter=mesh.plot(), style="points", color="black" >>> ).show()
>>> mesh_with_midpoints_faces <felupe Mesh object> Number of points: 36 Number of cells: quad: 25
See also
felupe.mesh.add_midpoints_faces
Add midpoints on faces for given points and cells and update cell_type accordingly.
 add_midpoints_volumes(cell_type=None)[source]#
Add midpoints on volumes for given points and cells and update cell_type accordingly.
 Parameters:
cell_type (str or None, optional) – A string in VTKconvention that specifies the new cell type (default is None). If None, the cell type is chosen automatically.
 Returns:
A new mesh with inserted midpoints on cell volumes.
 Return type:
Examples

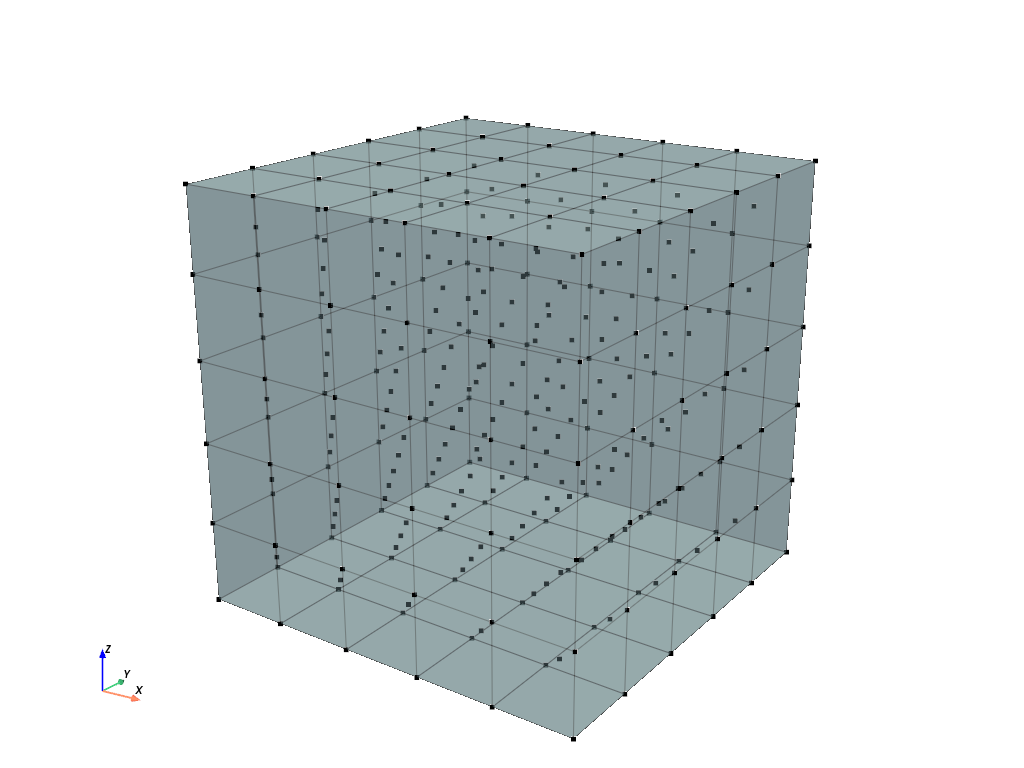

>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> mesh_with_midpoints_volumes = fem.mesh.add_midpoints_volumes( >>> mesh, cell_type_new="hexahedron9" >>> ) >>> >>> plotter = mesh.plot(opacity=0.5) >>> plotter.add_points(mesh_with_midpoints_volumes.points, color="black") >>> plotter.show()
>>> mesh_with_midpoints_volumes <felupe Mesh object> Number of points: 341 Number of cells: hexahedron9: 125
See also
felupe.mesh.add_midpoints_volumes
Add midpoints on volumes for given points and cells and update cell_type accordingly.
 add_runouts(values=[0.1, 0.1], centerpoint=[0, 0, 0], axis=0, exponent=5, mask=slice(None, None, None), normalize=False)[source]#
Add simple rubberrunouts for realistic rubbermetal structures.
 Parameters:
values (list or ndarray, optional) – Relative amount of runouts (per coordinate) perpendicular to the axis (default is 10% per coordinate, i.e. [0.1, 0.1]).
centerpoint (list or ndarray, optional) – Centerpoint coordinates (default is [0, 0, 0]).
axis (int or None, optional) – Axis (default is 0).
exponent (int, optional) – Positive exponent to control the shape of the runout. The higher the exponent, the steeper the transition (default is 5).
mask (list or None, optional) – List of points to be considered (default is None).
normalize (bool, optional) – Normalize the runouts to create indents, i.e. maintain the original shape at the ends (default is False).
 Returns:
The mesh with the modified point coordinates.
 Return type:
Examples

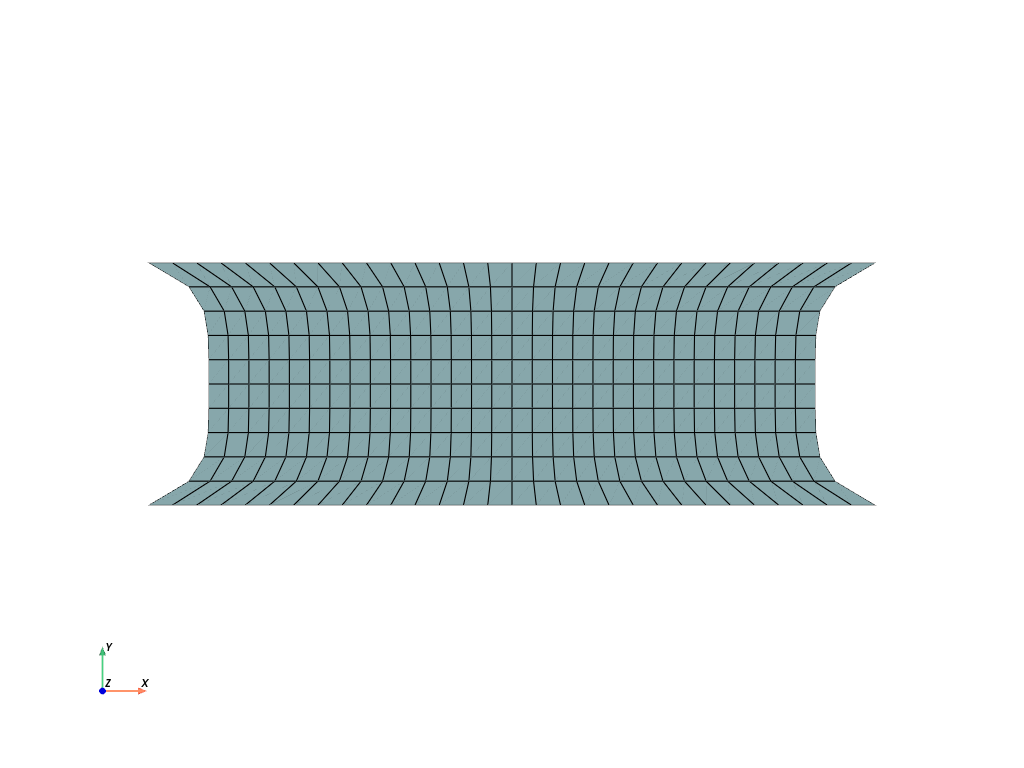

>>> import felupe as fem >>> >>> rect = fem.Rectangle(a=(3, 1), b=(3, 1), n=(31, 11)) >>> mesh = rect.add_runouts(axis=1, values=[0.2], normalize=True) >>> >>> mesh.plot().show()

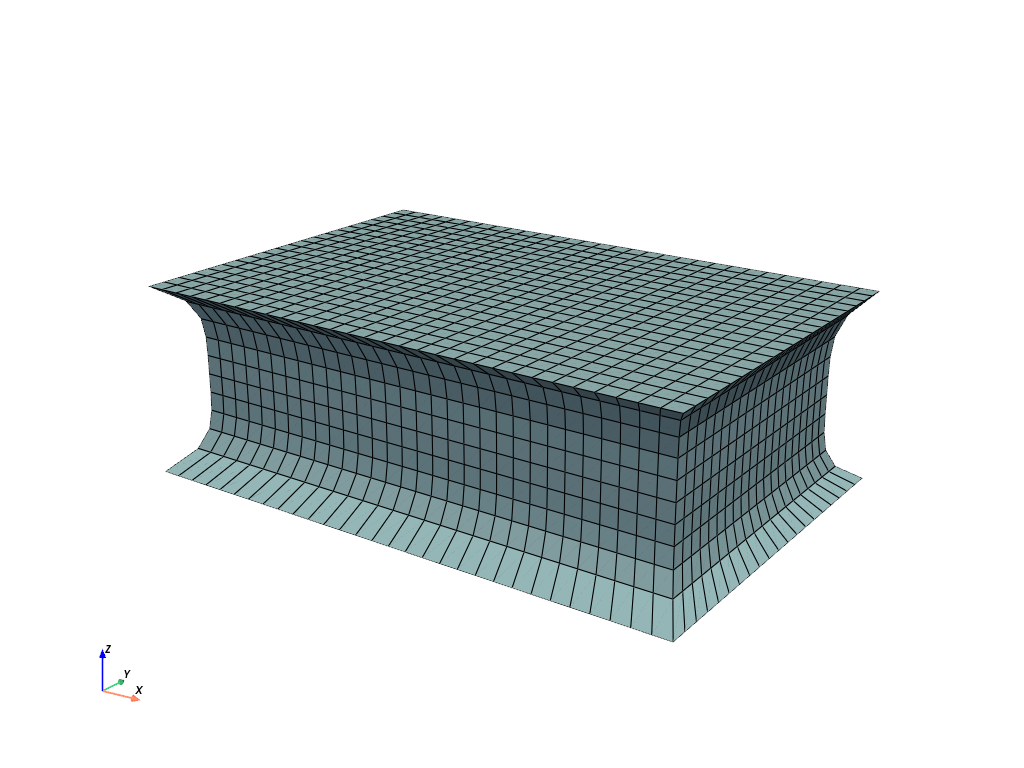

>>> import felupe as fem >>> >>> cube = fem.Cube(a=(3, 2, 1), b=(3, 2, 1), n=(31, 21, 11)) >>> mesh = cube.add_runouts(axis=2, values=[0.1, 0.3], normalize=True) >>> >>> mesh.plot().show()
See also
felupe.mesh.runouts
Add simple rubberrunouts for realistic rubbermetal structures.
 as_meshio(**kwargs)[source]#
Export the mesh as
meshio.Mesh
. Parameters:
**kwargs (dict, optional) – Additional keywordarguments for
meshio.Mesh(points, cells, **kwargs)
. Returns:
The mesh as
meshio.Mesh
. Return type:
meshio.Mesh
 as_pyvista(cell_type=None, **kwargs)[source]#
Export the mesh as
pyvista.UnstructuredGrid
. Parameters:
cell_type (pyvista.CellType or None, optional) – Celltype of PyVista (default is None).
**kwargs (dict, optional) – Additional keywordarguments for
pyvista.UnstructuredGrid
.
 Returns:
The mesh as
pyvista.UnstructuredGrid
. Return type:
 collect_edges(cells, cell_type)#
Collect all unique edges, calculate and return midpoints on edges as well as the additional cells array.
See also
felupe.mesh.add_midpoints_edges
Add midpoints on cell edges for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_edges
Add midpoints on cell edges for given points and cells and update cell_type accordingly.
 collect_faces(cells, cell_type)#
Collect all unique faces, calculate and return midpoints on faces as well as the additional cells array.
See also
felupe.mesh.add_midpoints_faces
Add midpoints on cell faces for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_faces
Add midpoints on cell faces for given points and cells and update cell_type accordingly.
 collect_volumes(cells, cell_type)#
Collect all volumes, calculate and return midpoints on volumes as well as the additional cells array.
See also
felupe.mesh.add_midpoints_volumes
Add midpoints on cell volumes for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_volumes
Add midpoints on cell volumes for given points and cells and update cell_type accordingly.
 convert(order=0, calc_points=False, calc_midfaces=False, calc_midvolumes=False)[source]#
Convert a mesh to a given order. Only conversions to
order=0
andorder=2
are supported. This function supports meshes with cell types"triangle"
,"tetra"
,"quad"
and"hexahedron"
. Parameters:
order (int, optional) – The order of the converted mesh (default is 0). If 0, the pointsarray will be of shape
(ncells, dim)
. If 0 andcalc_points
is True, the mean of all points per cell is evaluated. If 0 andcalc_points
is False, the points array is filled with zeros. If 2, at least midpoints on cell edges are added to the mesh. If 2 andcalc_midfaces
is True, midpoints on cell faces are also added. If 2 andcalc_midvolumes
is True, midpoints on cell volumes are also added. Raises an error if not 0 or 2.calc_points (bool, optional) – Flag to return the mean of all points per cell if
order=0
(default is False). If False, the pointsarray is filled with zeros.calc_midfaces (bool, optional) – Flag to add midpoints on cell faces if
order=2
(default is False).calc_midvolumes (bool, optional) – Flag to add midpoints on cell volumes if
order=2
(default is False).
 Returns:
The converted mesh.
 Return type:
Examples
Convert a mesh of hexahedrons to quadratic hexahedrons by inserting midpoints on the cell edges.
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=6) >>> mesh2 = mesh.convert(order=2) >>> >>> plotter = mesh2.plot(plotter=mesh.plot(), style="points", color="black") >>> plotter.show()
>>> mesh2 <felupe Mesh object> Number of points: 96 Number of cells: quad8: 25
See also
felupe.mesh.add_midpoints_edges
Add midpoints on edges for given points and cells and update cell_type accordingly.
felupe.mesh.add_midpoints_faces
Add midpoints on faces for given points and cells and update cell_type accordingly.
felupe.mesh.add_midpoints_volumes
Add midpoints on volumes for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_edges
Add midpoints on edges for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_faces
Add midpoints on faces for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_volumes
Add midpoints on volumes for given points and cells and update cell_type accordingly.
 copy(points=None, cells=None, cell_type=None)#
Return a deepcopy.
 disconnect(points_per_cell=None, calc_points=True)[source]#
Return a new instance of a Mesh with disconnected cells. Optionally, the pointspercell may be specified (must be lower or equal the number of points percell of the original Mesh). If the Mesh is to be used as a dual Mesh, then the pointcoordinates do not have to be recreated because they are not used.
See also
felupe.Mesh.dual
Create a new dual mesh with given points per cell.
 dual(points_per_cell=None, disconnect=True, calc_points=False, offset=0, npoints=None)[source]#
Create a new dual mesh with given points per cell.
 Parameters:
points_per_cell (int or None, optional) – Number of points per cell, must be equal or lower than
cells.shape[1]
( default is None). If None, all points per cell are considered for the dual mesh.disconnect (bool, optional) – A flag to disconnect the mesh (each cell has its own points). Default is True.
calc_points (bool, optional) – A flag to calculate the point coordinates for the dual mesh (default is False). If False, the points array is filled with zeros.
offset (int, optional) – An offset to be added to the cells array (default is 0).
npoints (int or None, optional) – Number of points for the dual mesh. If the given number of points is greater than
npoints * points_per_cell
, then the missing points are added to the points array (filled with zeros). Default is None.
 Returns:
The dual mesh.
 Return type:
Notes
Note
The points array of the dual mesh always has a shape of
(npoints * points_per_cell, dim)
.Examples
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=5).add_midpoints_edges() >>> region = fem.RegionQuadraticQuad(mesh=mesh) >>> >>> mesh_dual = mesh.dual(points_per_cell=1, disconnect=False) >>> region_dual = fem.RegionConstantQuad( >>> mesh_dual, quadrature=region.quadrature, grad=False >>> ) >>> >>> displacement = fem.FieldPlaneStrain(region, dim=2) >>> pressure = fem.Field(region_dual) >>> field = fem.FieldContainer([displacement, pressure])
See also
felupe.mesh.dual
Create a new dual mesh with given points per cell.
 expand(n=11, z=1, axis=1, expand_dim=True)[source]#
Expand a 0dPoint to a 1dLine, a 1dLine to a 2dQuad or a 2dQuad to a 3dHexahedron Mesh.
 Parameters:
n (int, optional) – Number of npoint repetitions or (n1)cell repetitions, default is 11. Must be greater than 0.
z (float or ndarray, optional) – Total expand dimension as float (edge length in expand direction is z / n), default is 1. Optionally, if an array is passed these entries are taken as expansion and
n
is ignored.axis (int, optional) – Axis of expansion (default is 1).
mask (ndarray or None, optional) – A boolean mask to select points which are rotated (default is None).
expand_dim (bool, optional) – Expand the dimension of the point coordinates (default is True).
 Returns:
The expanded mesh.
 Return type:
Examples
Expand a rectangle to a cube.
>>> import felupe as fem >>> >>> rect = fem.Rectangle(n=4) >>> cube = rect.expand(n=7, z=2) >>> >>> cube.plot().show()
>>> cube <felupe Mesh object> Number of points: 112 Number of cells: hexahedron: 54
See also
felupe.mesh.expand
Expand a 0dPoint to a 1dLine, a 1dLine to a 2dQuad or a 2dQuad to a 3dHexahedron Mesh.

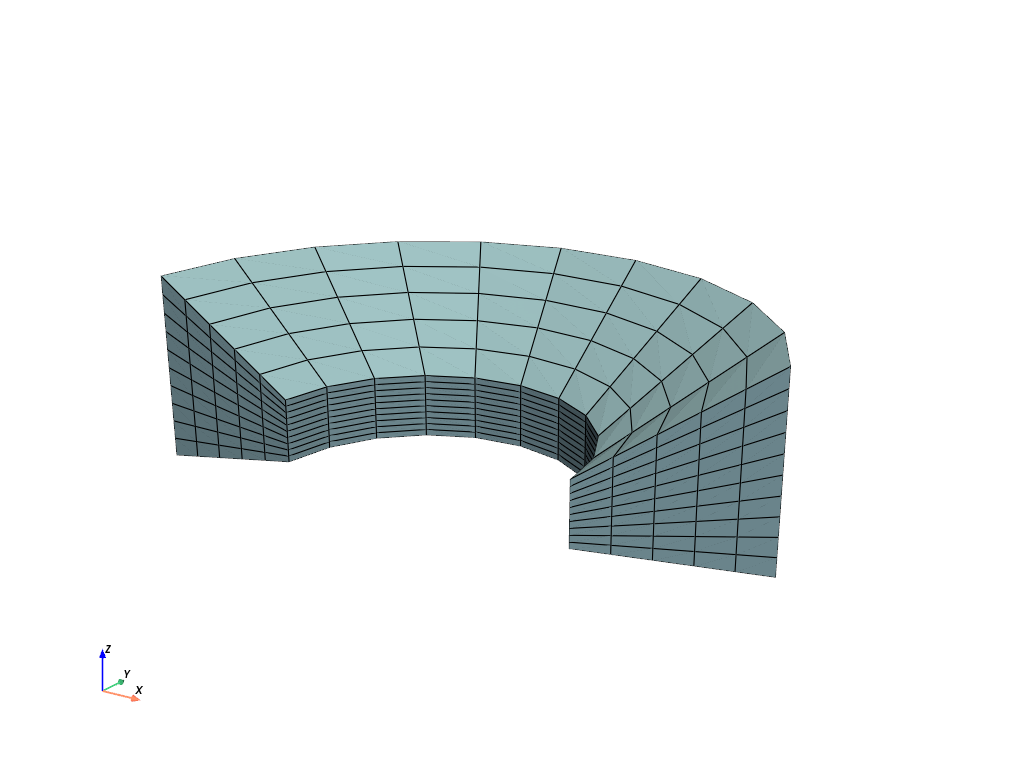

 fill_between(other_mesh, n=11)[source]#
Fill a 2dQuad Mesh between two 1dLine Meshes, embedded in 2dspace, or a 3dHexahedron Mesh between two 2dQuad Meshes, embedded in 3dspace, by expansion. Both meshes must have equal number of points and cells. The cellsarray is taken from the first mesh.
 Parameters:
other_mesh (felupe.Mesh) – The other line or quadmesh.
n (int or ndarray) – Number of npoint repetitions or (n1)cell repetitions, (default is 11). If an array is given, then its values are used for the relative positions in a reference configuration (1, 1) between the two meshes.
 Returns:
The expanded mesh.
 Return type:
Examples
>>> import felupe as fem >>> >>> inner = fem.mesh.revolve(fem.Point(1)).expand(z=0.4).translate(0.2, axis=2) >>> outer = fem.mesh.revolve(fem.Point(2), phi=160).rotate( >>> axis=2, angle_deg=20 >>> ).expand(z=1.2) >>> mesh = inner.fill_between(outer, n=6) >>> >>> mesh.plot().show()
See also
felupe.mesh.fill_between
Fill a 2dQuad Mesh between two 1dLine Meshes, embedded in 2dspace, or a 3dHexahedron Mesh between two 2dQuad Meshes, embedded in 3dspace, by expansion.
 flip(mask=None)[source]#
Ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.
 Parameters:
mask (list, ndarray or None, optional) – Boolean mask for selected cells to flip (default is None). If None, all cells are selected to be flipped.
 Returns:
The mesh with a rearranged cells array to ensure positive cell volumes.
 Return type:
Examples
A quad mesh with negative cell volumes occurs if one coordinate axis is multiplied by 1. The error pops up if a region is created with this mesh.
>>> import numpy as np >>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=3) >>> mesh.update(points=mesh.points * np.array([[1, 1]])) >>> region = fem.RegionQuad(mesh) UserWarning: Negative volumes for cells [0 1 2 3] Try ``mesh.flip(np.any(region.dV < 0, axis=0))`` and recreate the region. warnings.warn(message_negative_volumes)
The sum of the differential volumes \(V = \sum_c \sum_q dV_{qc}\) is evaluated to 1.0.
>>> region.dV.sum() 1.0
Let’s try to fix the mesh.
>>> mesh.cells array([[0, 1, 4, 3], [1, 2, 5, 4], [3, 4, 7, 6], [4, 5, 8, 7]])
The cells array is rearranged to ensure positive cell volumes.
>>> mesh_fixed = mesh.flip() >>> mesh_fixed.cells array([[3, 4, 1, 0], [4, 5, 2, 1], [6, 7, 4, 3], [7, 8, 5, 4]])
A region now correctly evaluates the total volume of the mesh to 1.0.
>>> region_fixed = fem.RegionQuad(mesh_fixed) >>> region_fixed.dV.sum() 1.0
See also
felupe.mesh.flip
Ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.
 get_cell_ids(point_ids)[source]#
Return cell ids which have the given point ids in their connectivity.
 Parameters:
point_ids (list or ndarray) – Array with point ids which are used to search for cells.
 Returns:
Array with cell ids which have the given point ids in their connectivity.
 Return type:
ndarray
Examples
>>> import numpy as np >>> import felupe as fem >>> >>> mesh = fem.Cube(n=11) >>> point_ids = mesh.get_point_ids([0, 1, 1]) >>> point_ids array([1320], dtype=int64)
>>> cell_ids = mesh.get_cell_ids(point_ids) >>> cell_ids array([990], dtype=int64)
 get_cell_ids_neighbours(cell_ids)[source]#
Return cell ids which share points with given cell ids.
 Parameters:
cell_ids (list or ndarray) – Array with cell ids which are used to search for neighbour cells.
 Returns:
Array with cell ids which are next to the given cells.
 Return type:
ndarray
Examples
>>> import numpy as np >>> import felupe as fem >>> >>> mesh = fem.Cube(n=11) >>> point_ids = mesh.get_point_ids([0, 1, 1]) >>> point_ids array([1320], dtype=int64)
>>> cell_ids = mesh.get_cell_ids(point_ids) >>> cell_ids array([990], dtype=int64)
Find the cell ids which share at least one point with the given cell id(s).
>>> cell_ids_neighbours = mesh.get_cell_ids_neighbours(cell_ids) array([880, 881, 890, 891, 980, 981, 990, 991], dtype=int64)
 get_point_ids(value, fun=<function isclose>, mode=<function all>, **kwargs)[source]#
Return point ids for points which are close to a given value.
 Parameters:
value (float, list or ndarray) – Scalar value or point coordinates.
fun (callable, optional) – The function used to compare the points to the given value, i.e. with a function signature
fun(mesh.points, value, **kwargs)
. Default isnumpy.isclose()
.mode (callable, optional) – A callable used to combine the search results, either
numpy.any()
ornumpy.all()
.**kwargs (dict, optional) – Additional keyword arguments for
fun(mesh.points, value, **kwargs)
.
 Returns:
Array with point ids.
 Return type:
ndarray
Examples
Get point ids at given coordinates for a mesh with duplicate points.
>>> import numpy as np >>> import felupe as fem >>> >>> mesh = fem.Cube(n=11) >>> mesh.update(points=np.vstack([mesh.points, mesh.points])) >>> point_ids = mesh.get_point_ids([0, 1, 1]) >>> point_ids array([1320, 2651], dtype=int64)
>>> mesh.points[point_ids] array([[0., 1., 1.], [0., 1., 1.]])
 get_point_ids_corners()[source]#
Return point ids which are located at (xmin, ymin), (xmax, ymin), etc.
 Returns:
Array with point ids which are located at the corners.
 Return type:
ndarray
Examples
>>> import numpy as np >>> import felupe as fem >>> >>> mesh = fem.Cube(n=11) >>> point_ids_corners = mesh.get_point_ids_corners() >>> point_ids_corners array([ 0, 1210, 10, 1220, 110, 1320, 120, 1330], dtype=int64)
Return shared point ids for given cell ids.
 Parameters:
cells_neighbours (list or ndarray) – Array with cell ids.
 Returns:
Array with point ids which are connected to all given cell neighbours.
 Return type:
ndarray
Examples
>>> import numpy as np >>> import felupe as fem >>> >>> mesh = fem.Cube(n=11) >>> point_ids = mesh.get_point_ids([0, 1, 1]) >>> point_ids array([1320], dtype=int64)
>>> cell_ids = mesh.get_cell_ids(point_ids) >>> cell_ids array([990], dtype=int64)
Find the cell ids which share at least one point with the given cell id(s).
>>> cell_ids_neighbours = mesh.get_cell_ids_neighbours(cell_ids) array([880, 881, 890, 891, 980, 981, 990, 991], dtype=int64)
Find the shared point ids for the list of cell ids.
>>> point_ids_shared = mesh.get_point_ids_shared(cell_ids_neighbours) >>> point_ids_shared array([1189])
 imshow(*args, ax=None, **kwargs)[source]#
Take a screenshot of the mesh, show the image data in a figure and return the ax.
 merge_duplicate_cells(cells, cell_type)#
Merge duplicate cells of a Mesh.
 Parameters:
 Returns:
points (ndarray) – Point coordinates.
cells (list or ndarray) – Cells with merged duplicate cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Notes
Warning
This function resorts cells.
Note
This function does not merge duplicate points.
Examples
Two quad meshes to be merged overlap some cells. Merge these duplicated points and update the cells.
>>> import felupe as fem >>> >>> rect1 = fem.Rectangle(n=11) >>> rect2 = fem.Rectangle(a=(0.9, 0), b=(1.9, 1), n=11) >>> >>> container = fem.MeshContainer([rect1, rect2]) >>> stack = fem.mesh.stack(container.meshes) >>> mesh = fem.mesh.merge_duplicate_points(stack) >>> >>> mesh.plot(opacity=0.6).show()
Each mesh contains 121 points and 100 cells.
>>> rect1 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
>>> rect2 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
These two meshes are now stored in a
MeshContainer
.>>> container <felupe mesh container object> Number of points: 242 Number of cells: quad: 100 quad: 100
The meshes of the mesh container are
stacked
.>>> stack <felupe Mesh object> Number of points: 242 Number of cells: quad: 200
After merging the duplicated points and cells, the number of points is reduced but the number of cells is unchanged.
>>> mesh <felupe Mesh object> Number of points: 220 Number of cells: quad: 200
Note
The
MeshContainer
may be directly created withmerge=True
. This enforcesmerge_duplicate_points()
for the shared points array of the container.The duplicate cells are merged in a second step.
>>> merged = fem.mesh.merge_duplicate_cells(mesh) >>> merged <felupe Mesh object> Number of points: 220 Number of cells: quad: 190
See also
felupe.Mesh.merge_duplicate_points
Merge duplicate points of a Mesh.
felupe.Mesh.merge_duplicate_cells
Merge duplicate cells of a Mesh.
felupe.MeshContainer
A container which operates on a list of meshes with identical dimensions.

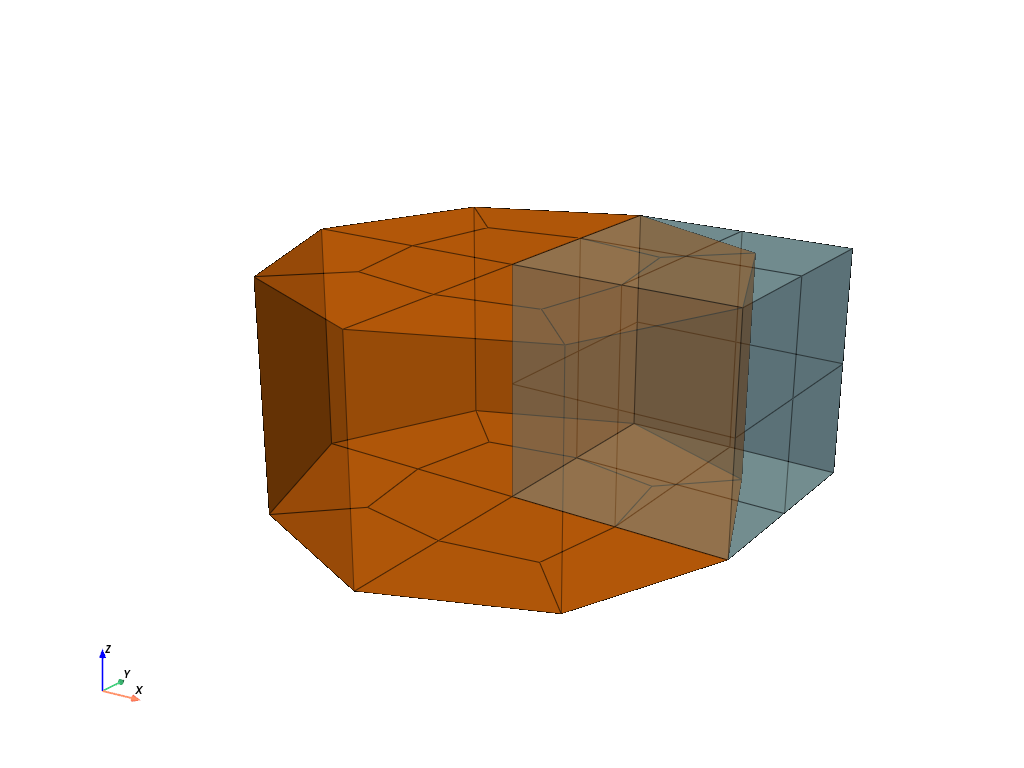

 merge_duplicate_points(decimals=None)[source]#
Merge duplicate points and update cells of a Mesh.
 Parameters:
decimals (int or None, optional) – Number of decimals for point coordinate comparison (default is None).
 Returns:
The mesh with merged duplicate points and updated cells.
 Return type:
Notes
Warning
This function resorts points.
Note
This function does not merge duplicate cells.
Examples
Two quad meshes to be merged overlap some points. Merge these duplicated points and update the cells.
>>> import felupe as fem
>>> rect1 = fem.Rectangle(n=11) >>> rect2 = fem.Rectangle(a=(0.9, 0), b=(1.9, 1), n=11) >>> rect2 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
Each mesh contains 121 points and 100 cells. These two meshes are now stored in a
MeshContainer
.>>> container = fem.MeshContainer([rect1, rect2]) >>> container <felupe mesh container object> Number of points: 242 Number of cells: quad: 100 quad: 100
The meshes of the mesh container are
stacked
.>>> stack = fem.mesh.stack(container.meshes) >>> stack <felupe Mesh object> Number of points: 242 Number of cells: quad: 200
After merging the duplicated points and cells, the number of points is reduced but the number of cells is unchanged.
>>> mesh = stack.merge_duplicate_points() >>> mesh <felupe Mesh object> Number of points: 220 Number of cells: quad: 200
>>> ax = mesh.imshow(opacity=0.6)
Note
The
MeshContainer
may be directly created withmerge=True
. This enforcesmerge_duplicate_points()
for the shared points array of the container.See also
felupe.mesh.merge_duplicate_points
Merge duplicated points and update cells of a Mesh.
felupe.MeshContainer
A container which operates on a list of meshes with identical dimensions.

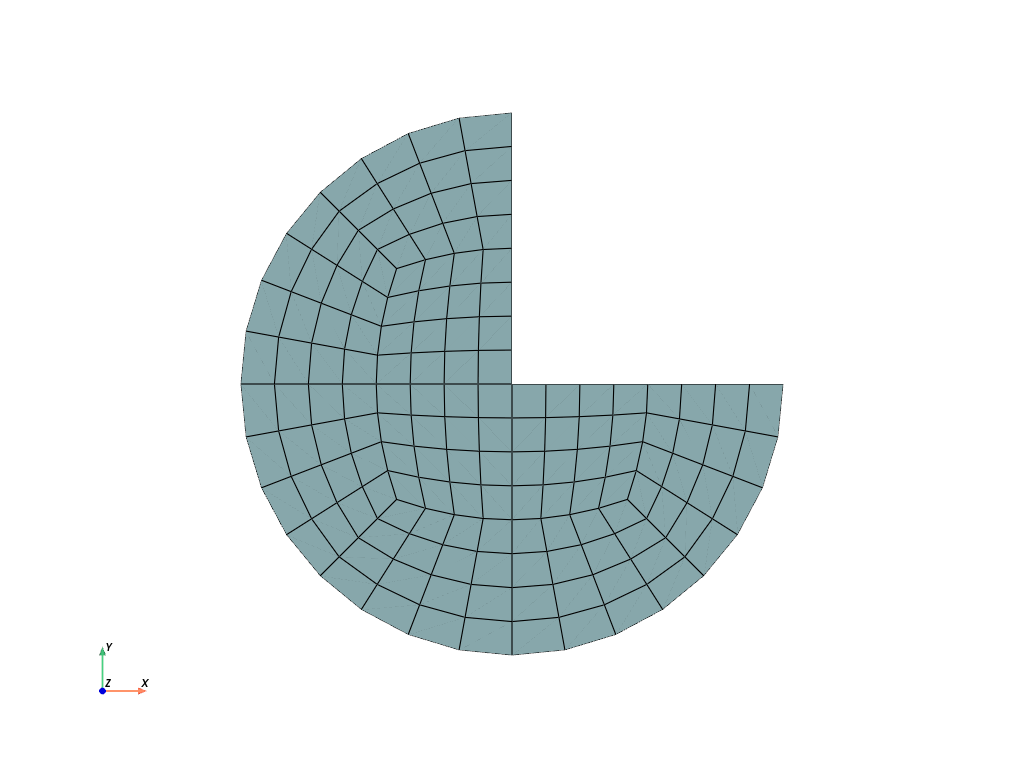

 mirror(normal=[1, 0, 0], centerpoint=[0, 0, 0], axis=None)[source]#
Mirror points by plane normal and ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.
 Parameters:
 Returns:
The mirrored mesh.
 Return type:
Examples

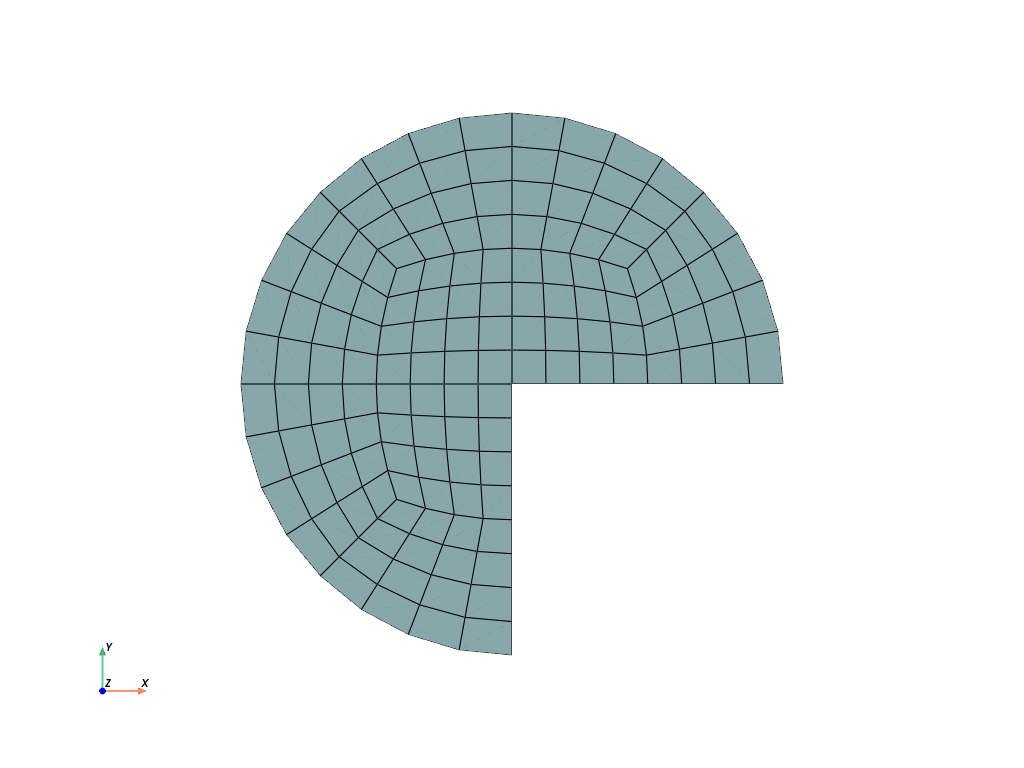

>>> import felupe as fem >>> >>> mesh = fem.Circle(sections=[0, 90, 180], n=5) >>> mesh.plot().show()
>>> import felupe as fem >>> >>> mesh = fem.Circle(sections=[0, 90, 180], n=5) >>> mesh.mirror(normal=[0, 1, 0]).plot().show()
See also
felupe.Mesh.mirror
Mirror points by plane normal and ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.
 modify_corners(point_ids=None)[source]#
Modify the corners of a regular rectangle (quad) or cube (hexahedron) inplace. Only the cells array is modified, the points array remains unchanged.
 Parameters:
point_ids (ndarray or None, optional) – Array with point ids located at the corners which are modified (default is None). If None, all corners are modified.
Notes
Description of the algorithm:
Get corner point ids.
For each corner point:
Get attached cell and find cell neighours.
Get the shared point of the cell and its neighbours.
Get pairwise shared points which are located on an edge.
Replace the shared points with the corner point.
Delete the cell attached to the corner point.
Examples
>>> import numpy as np >>> import felupe as fem >>> >>> mesh = fem.Rectangle(b=(3, 1), n=(16, 6))
>>> mesh = mesh.modify_corners() # inplace

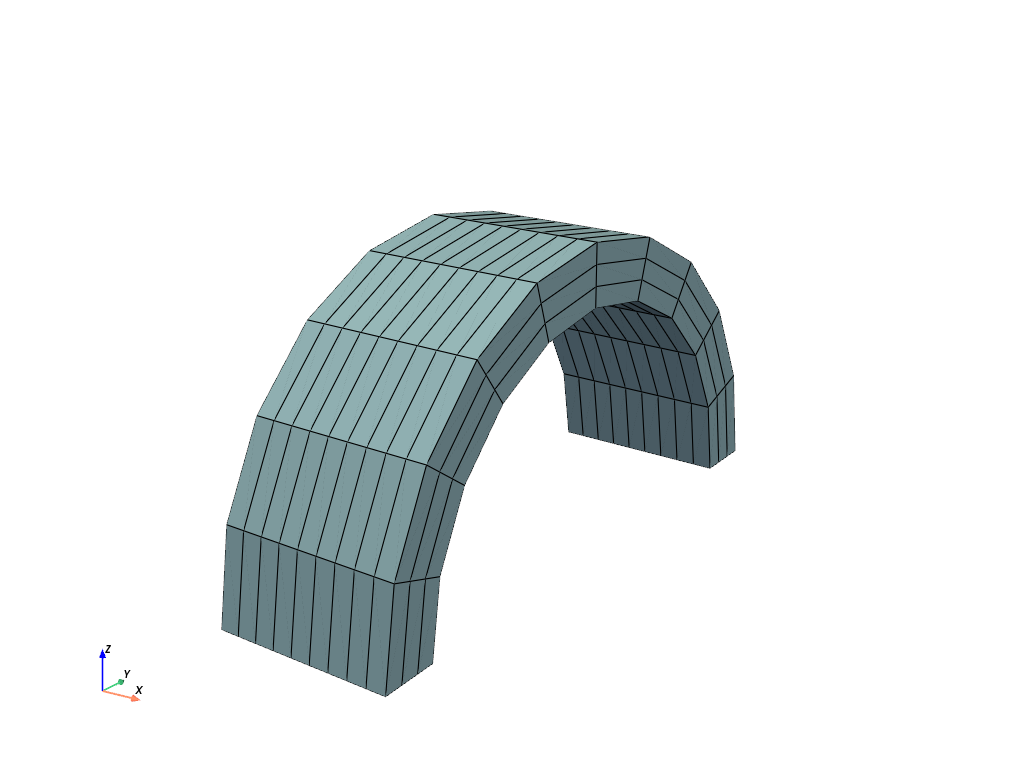

 revolve(n=11, phi=180, axis=0, expand_dim=True)[source]#
Revolve a 2dQuad to a 3dHexahedron Mesh.
 Parameters:
n (int, optional) – Number of npoint revolutions (or (n1) cell revolutions), default is 11.
phi (float or ndarray, optional) – Revolution angle in degree (default is 180).
axis (int, optional) – Revolution axis (default is 0).
expand_dim (bool, optional) – Expand the dimension of the point coordinates (default is True).
 Returns:
The revolved mesh.
 Return type:
Examples
Revolve a cylinder from a rectangle.
>>> import felupe as fem >>> >>> rect = fem.Rectangle(a=(0, 4), b=(3, 5), n=(10, 4)) >>> mesh = rect.revolve(n=11, phi=180, axis=0) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 440 Number of cells: hexahedron: 270
See also
felupe.mesh.revolve
Revolve a 2dQuad to a 3dHexahedron Mesh.
 rotate(angle_deg, axis, center=None, mask=None)[source]#
Rotate a Mesh.
 Parameters:
 Returns:
The rotated mesh.
 Return type:
Examples

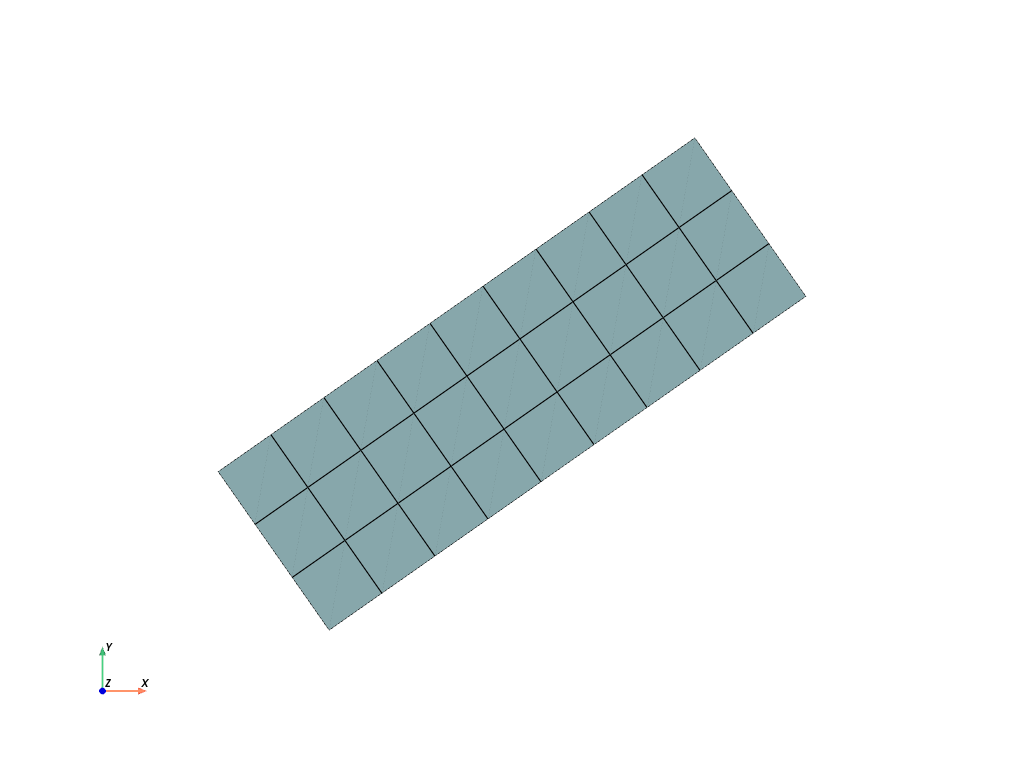

Rotate a rectangle in the xyplane by 35 degree.
>>> import felupe as fem >>> >>> rect = fem.Rectangle(b=(3, 1), n=(10, 4)) >>> mesh = rect.rotate(angle_deg=35, axis=2, center=[1.5, 0.5]) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 40 Number of cells: quad: 27
See also
felupe.mesh.rotate
Rotate a Mesh.
 screenshot(*args, filename='mesh.png', transparent_background=None, scale=None, **kwargs)[source]#
Take a screenshot of the mesh.
See also
pyvista.Plotter.screenshot
Take a screenshot of a PyVista plotter.
 translate(move, axis)[source]#
Translate (move) a Mesh along a given axis.
 Parameters:
 Returns:
The translated mesh.
 Return type:
Examples
>>> import felupe as fem >>> >>> mesh = fem.Circle(n=6) >>> mesh.points.min(axis=0), mesh.points.max(axis=0) (array([0., 0., 0.]), array([1., 1., 1.]))
>>> translated = mesh.translate(0.3, axis=1) >>> translated.points.min(axis=0), translated.points.max(axis=0) (array([0. , 0.3, 0. ]), array([1. , 1.3, 1. ]))
See also
felupe.mesh.translate
Translate (move) a Mesh along a given axis.
 triangulate(mode=3)[source]#
Triangulate a quad or a hex mesh.
 Parameters:
mode (int, optional) – Choose a mode how to convert hexahedrons to tets [1]_ (default is 3).
 Returns:
The triangulated mesh.
 Return type:
Examples

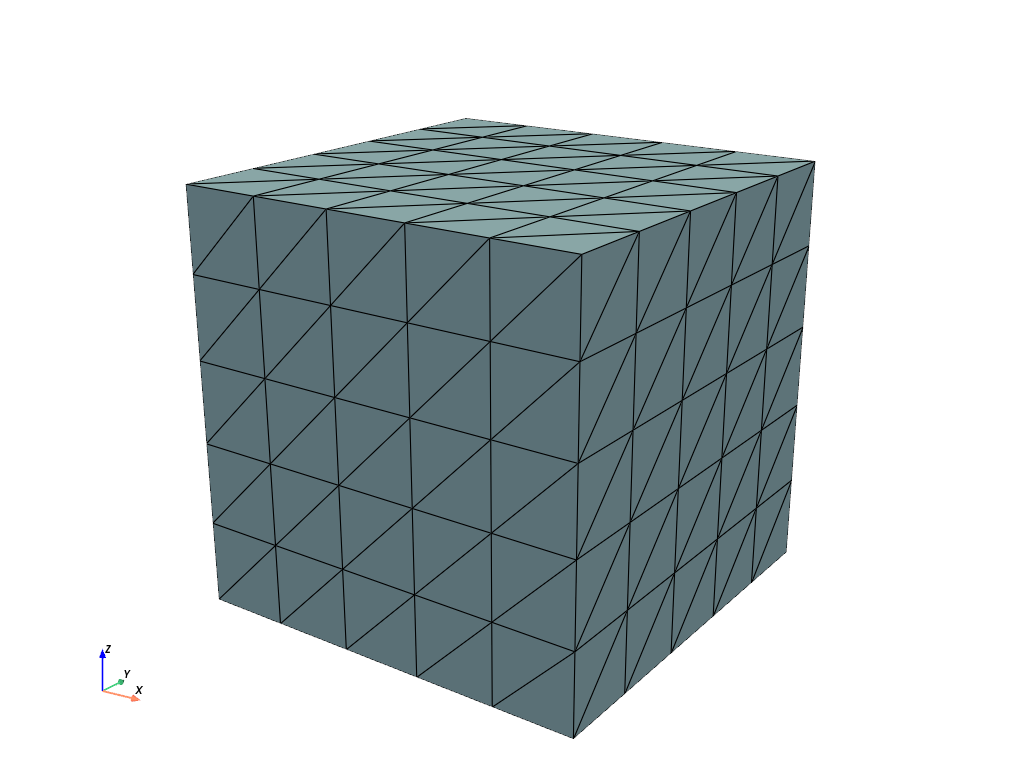

Use
mode=0
to convert a mesh of hexahedrons into tetrahedrons [1]_.>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> mesh.triangulate(mode=0).plot().show()

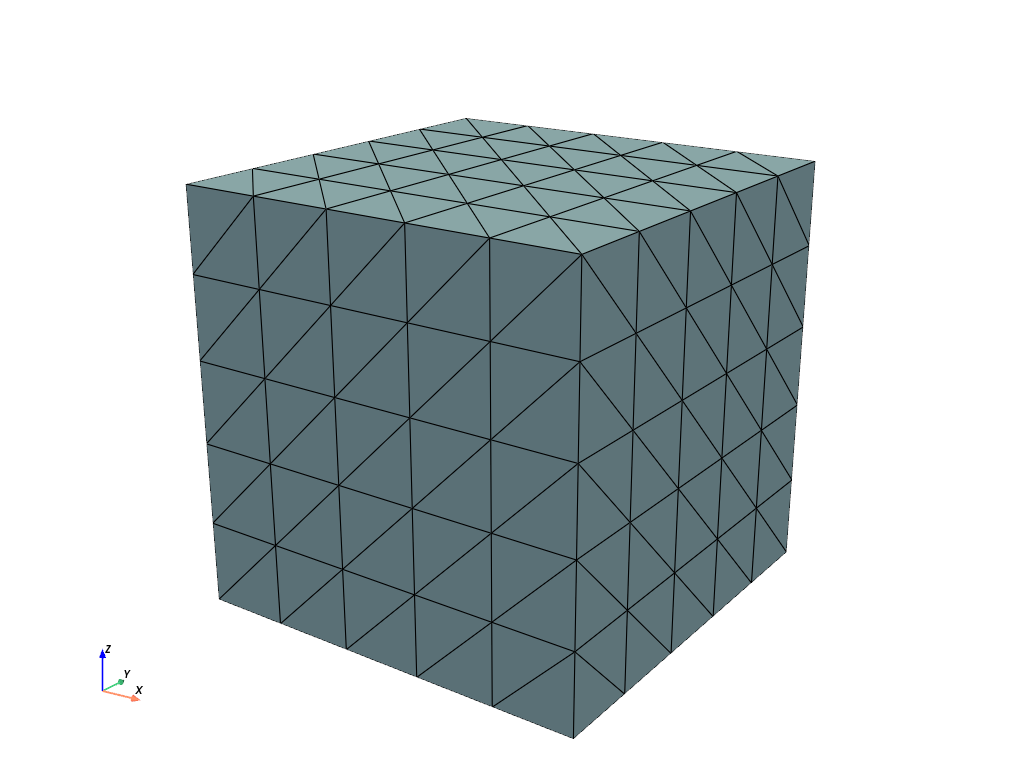

Use
mode=3
to convert a mesh of hexahedrons into tetrahedrons [1]_.>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> mesh.triangulate(mode=3).plot().show()
References
See also
felupe.mesh.triangulate
Triangulate a quad or a hex mesh.
 update(points=None, cells=None, cell_type=None, callback=None)#
Update the mesh with given points and cells arrays inplace. Optionally, a callback is evaluated.
 Parameters:
points (ndarray or None) – New point coordinates (default is None). If None, it is unchanged.
cells (ndarray) – New pointconnectivity of cells (default is None). If None, it is unchanged.
cell_type (str or None, optional) – New string in VTKconvention that specifies the cell type (default is None). If None, it is unchanged.
callback (callable or None, optional) – A callable which is called after the mesh is updated (default is None).
Examples
Warning
If the points of a mesh are modified and a region was already created with the mesh, it is important to reevaluate (reload) the
Region
.>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> region = fem.RegionHexahedron(mesh) >>> field = fem.FieldContainer([fem.Field(region, dim=3)]) >>> >>> new_points = mesh.rotate(angle_deg=90, axis=2).points >>> mesh.update(points=new_points, callback=region.reload)
See also
felupe.Region.reload
Reload the numeric region.
 view(point_data=None, cell_data=None, cell_type=None)[source]#
View the mesh with optional given dicts of point and celldata items.
 Parameters:
 Returns:
A object which provides visualization methods for
felupe.Mesh
. Return type:
felupe.ViewMesh
See also
felupe.ViewMesh
Visualization methods for
Mesh
.
 write(filename='mesh.vtk', **kwargs)[source]#
Write the mesh to a file.
 Parameters:
Notes
Note
For XDMFexport please ensure to have
h5py
(as an optional dependency ofmeshio
) installed.Examples
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=3) >>> mesh.write(filename="mesh.vtk")
See also
felupe.mesh.read
Read a mesh from a file using
meshio.read()
.felupe.Mesh.write
Write the mesh to a file.
 property x#
Return the first column (xcomponent) of the points array.
 property y#
Return the second column (ycomponent) of the points array.
 property z#
Return the third column (zcomponent) of the points array.
 class felupe.MeshContainer(meshes, merge=False, decimals=None)[source]#
A container which operates on a list of meshes with identical dimensions.
 Parameters:
meshes (list of Mesh) – A list of meshes which are organized by the mesh container.
merge (bool, optional) – Flag to merge duplicate mesh points. This changes the cells arrays of the meshes. Default is False.
decimals (float or None, optional) – Precision decimals for merging duplicated mesh points. Only relevant if merge=True. Default is None.
Notes
All meshes are modified to refer to the same points array. By default, the points arrays from the given list of meshes is concatenated and the cells arrays are modified accordingly. Optionally, the points array may be merged on duplicated points.
Examples
>>> import felupe as fem >>> >>> cube = fem.Cube(n=3) >>> cylinder = fem.Circle().expand(n=2) >>> mesh = fem.MeshContainer([cube, cylinder]) >>> >>> mesh.plot().show()
>>> mesh <felupe mesh container object> Number of points: 61 Number of cells: hexahedron: 8 hexahedron: 12
The cells array of the second mesh starts with an offset
>>> mesh.meshes[1].cells.min() 27
identical to the number of points from the first mesh.
>>> cube.npoints 27
If the container is created with
merge=True
, then the number of points is lower than before.>>> import felupe as fem >>> >>> cube = fem.Cube(n=3) >>> cylinder = fem.Circle().expand(n=2) >>> mesh = fem.MeshContainer([cube, cylinder], merge=True) >>> >>> mesh.plot().show()
>>> mesh <felupe mesh container object> Number of points: 51 Number of cells: hexahedron: 8 hexahedron: 12
 imshow(*args, ax=None, dpi=None, **kwargs)[source]#
Take a screenshot of the meshes of the mesh container, show the image data in a figure and return the ax.
 plot(*args, colors=None, opacity=0.99, **kwargs)[source]#
Plot the meshes of the mesh container.
See also
felupe.Scene.plot
Plot method of a scene.
 screenshot(*args, filename='mesh.png', transparent_background=None, scale=None, colors=None, opacity=0.99, **kwargs)[source]#
Take a screenshot of the meshes of the mesh container.
See also
pyvista.Plotter.screenshot
Take a screenshot of a PyVista plotter.
 stack(idx=None)[source]#
Stack cellblocks with same celltypes into a single mesh.
 Parameters:
idx (list of int or None, optional) – List of meshindices to be stacked (default is None).
 Returns:
The stacked mesh.
 Return type:
Notes
The
points
array is taken from the first mesh. Thecells
array of the stacked mesh is created by a vertical stack of thecells
arrays.Examples
Two quad meshes with identical point arrays should be stacked into a single mesh.
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=11) >>> rect1, rect2 = mesh.copy(), mesh.copy() >>> rect1.update(cells=mesh.cells[: 40]) >>> rect2.update(cells=mesh.cells[50:]) >>> container = fem.MeshContainer([rect1, rect2]) >>> mesh = container.stack() >>> >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 121 Number of cells: quad: 90
See also
felupe.mesh.stack
Stack cellblocks from meshes with identical pointsarray and celltypes.
 class felupe.Point(a=0.0)[source]#
Bases:
Mesh
A mesh with a single vertex point located at
a
. Parameters:
a (float, optional) – Vertex point coordinate of the mesh (default is 0.0).
Examples
>>> import felupe as fem
>>> mesh = fem.Point(a=2.1) >>> mesh <felupe Mesh object> Number of points: 1 Number of cells: vertex: 1
>>> mesh.points array([2.1])
>>> mesh.cells array([[0]])
>>> mesh.imshow()
 class felupe.mesh.Line(a=0.0, b=1.0, n=2)[source]#
Bases:
Mesh
A 1dmesh with lines between
a
andb
withn
points. Parameters:
Examples
>>> import felupe as fem >>> >>> mesh = fem.mesh.Line(a=2.1, b=3.5, n=3) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 3 Number of cells: line: 2
>>> mesh.points array([[2.1], [ 0.7], [ 3.5]])
>>> mesh.cells array([[0, 1], [1, 2]])
 class felupe.Rectangle(a=(0.0, 0.0), b=(1.0, 1.0), n=(2, 2))[source]#
Bases:
Mesh
A rectangular 2dmesh with quads between
a
andb
withn
points per axis. Parameters:
Examples
>>> import felupe as fem >>> >>> mesh = fem.mesh.Rectangle(a=(1.2, 0.5), b=(4.5, 7.3), n=3) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 9 Number of cells: quad: 4
>>> mesh.points array([[1.2 , 0.5 ], [ 1.65, 0.5 ], [ 4.5 , 0.5 ], [1.2 , 3.9 ], [ 1.65, 3.9 ], [ 4.5 , 3.9 ], [1.2 , 7.3 ], [ 1.65, 7.3 ], [ 4.5 , 7.3 ]])
>>> mesh.cells array([[0, 1, 4, 3], [1, 2, 5, 4], [3, 4, 7, 6], [4, 5, 8, 7]])
 class felupe.Cube(a=(0.0, 0.0, 0.0), b=(1.0, 1.0, 1.0), n=(2, 2, 2))[source]#
Bases:
Mesh
A cube shaped 3dmesh with hexahedrons between
a
andb
withn
points per axis. Parameters:
Examples

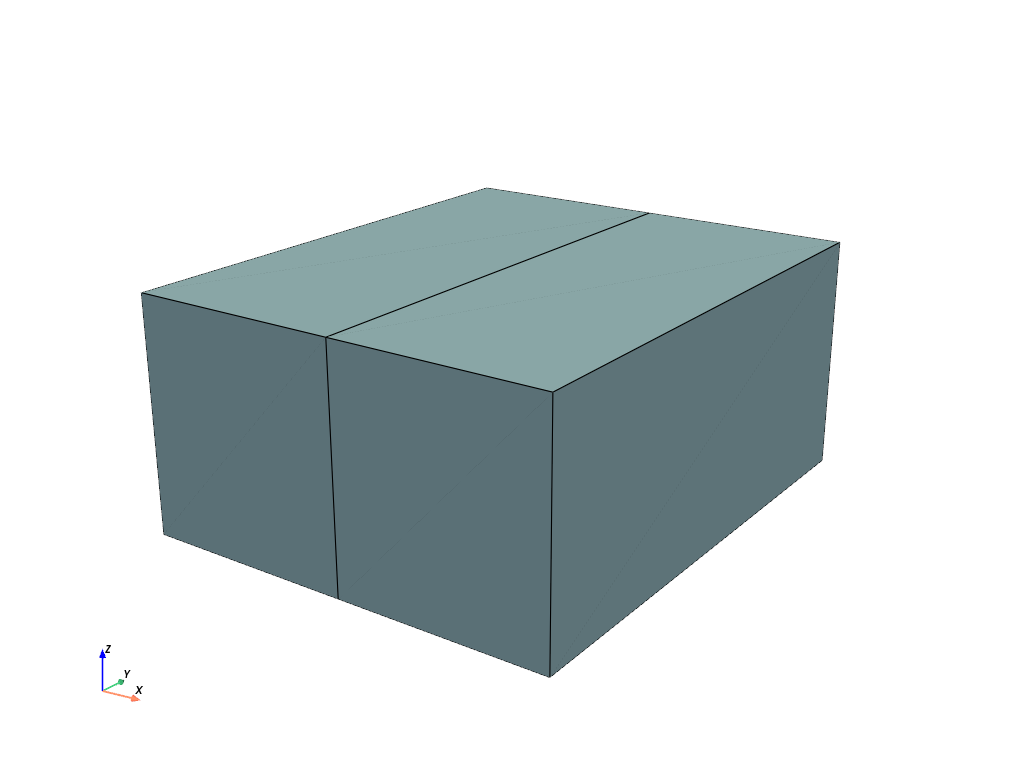

>>> import felupe as fem >>> >>> mesh = fem.mesh.Cube(a=(1.2, 0.5, 6.2), b=(4.5, 7.3, 9.3), n=(3, 2, 2)) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 12 Number of cells: hexahedron: 2
>>> mesh.points array([[1.2 , 0.5 , 6.2 ], [ 1.65, 0.5 , 6.2 ], [ 4.5 , 0.5 , 6.2 ], [1.2 , 7.3 , 6.2 ], [ 1.65, 7.3 , 6.2 ], [ 4.5 , 7.3 , 6.2 ], [1.2 , 0.5 , 9.3 ], [ 1.65, 0.5 , 9.3 ], [ 4.5 , 0.5 , 9.3 ], [1.2 , 7.3 , 9.3 ], [ 1.65, 7.3 , 9.3 ], [ 4.5 , 7.3 , 9.3 ]])
>>> mesh.cells array([[ 0, 1, 4, 3, 6, 7, 10, 9], [ 1, 2, 5, 4, 7, 8, 11, 10]])
 class felupe.Grid(*xi, indexing='ij', **kwargs)[source]#
Bases:
Mesh
A grid shaped 3dmesh with hexahedrons. Basically a wrapper for
numpy.meshgrid()
with defaultindexing="ij"
. Parameters:
x1 (array_like) – 1D arrays representing the coordinates of a grid.
x2 (array_like) – 1D arrays representing the coordinates of a grid.
... (array_like) – 1D arrays representing the coordinates of a grid.
xn (array_like) – 1D arrays representing the coordinates of a grid.
Examples
>>> import numpy as np >>> import felupe as fem >>> >>> x1 = np.linspace(0, 2, 3)**2 >>> x2 = np.sqrt(np.linspace(0, 1, 3)) >>> >>> mesh = fem.mesh.Grid(x1, x2) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 9 Number of cells: quad: 4
>>> mesh.points array([[0. , 0. ], [1. , 0. ], [4. , 0. ], [0. , 0.70710678], [1. , 0.70710678], [4. , 0.70710678], [0. , 1. ], [1. , 1. ], [4. , 1. ]])
>>> mesh.cells array([[0, 1, 4, 3], [1, 2, 5, 4], [3, 4, 7, 6], [4, 5, 8, 7]])
See also
numpy.meshgrid
Return a list of coordinate matrices from coordinate vectors.
 class felupe.Circle(radius=1.0, centerpoint=[0.0, 0.0], n=2, sections=[0, 90, 180, 270], value=0.15, exponent=2, decimals=10)[source]#
Bases:
Mesh
A circular shaped 2dmesh with quads and
n
points on the circumferential edge of a 45degree section. 90degreesections
are placed at given angles in degree. Parameters:
radius (float, optional) – Lowerleft end point of the mesh (default is (0.0, 0.0)).
centerpoint (2list of float, optional) – Coordinates of the origin where the circle is centered (default is [1.0, 1.0]).
n (int, optional) – Number of points per axis for a quarter of the embedded rectangle (default is 2).
sections (list of int or float, optional) – Rotation angles in deg where quarter circles (sections) are placed (default is [0, 90, 180, 270]).
value (float) – First shape parameter of the embedded rectangle (default is 0.15).
exponent (int) – Second shape parameter of the embedded rectangle (default is 2).
decimals (int) – Decimals used for rounding point coordinates to avoid nonconnected sections (default is 10).
Examples

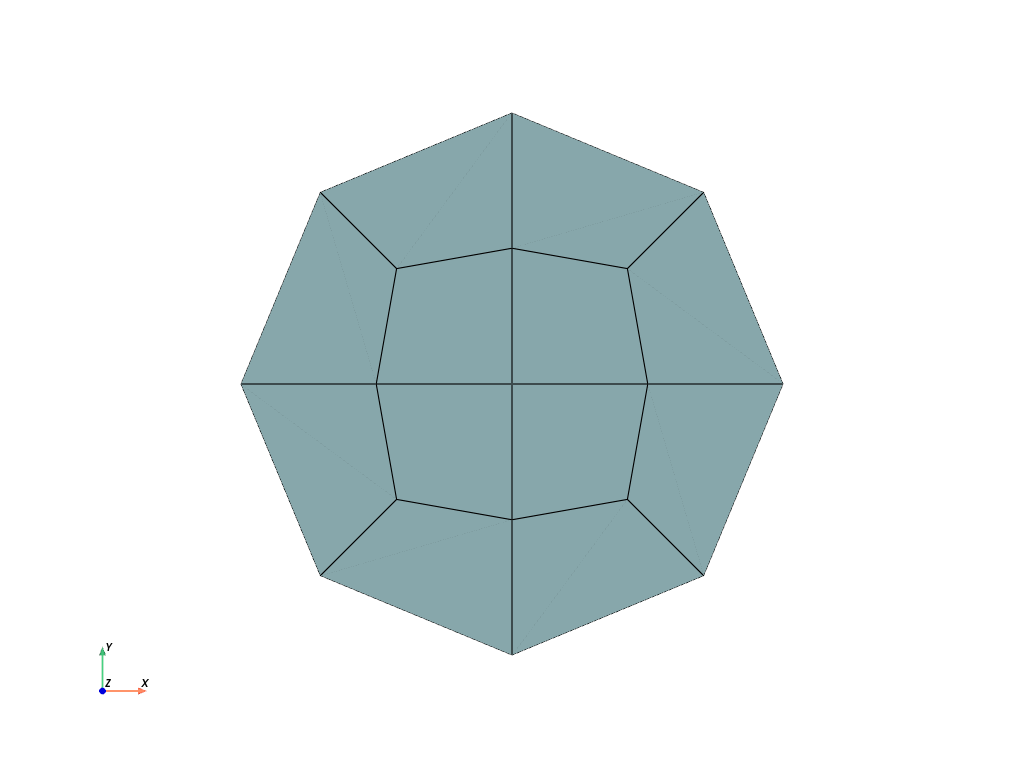

>>> import felupe as fem >>> >>> mesh = fem.mesh.Circle() >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 17 Number of cells: quad: 12
>>> mesh.points array([[1. , 0. ], [0.70710678, 0.70710678], [0.70710678, 0.70710678], [0.5 , 0. ], [0.425 , 0.425 ], [0.425 , 0.425 ], [ 0. , 1. ], [ 0. , 0.5 ], [ 0. , 0. ], [ 0. , 0.5 ], [ 0. , 1. ], [ 0.425 , 0.425 ], [ 0.425 , 0.425 ], [ 0.5 , 0. ], [ 0.70710678, 0.70710678], [ 0.70710678, 0.70710678], [ 1. , 0. ]])
>>> mesh.cells array([[12, 13, 16, 15], [15, 10, 9, 12], [ 8, 13, 12, 9], [ 5, 9, 10, 2], [ 2, 0, 3, 5], [ 8, 9, 5, 3], [ 4, 3, 0, 1], [ 1, 6, 7, 4], [ 8, 3, 4, 7], [11, 7, 6, 14], [14, 16, 13, 11], [ 8, 7, 11, 13]])
 class felupe.mesh.Triangle(a=(0.0, 0.0), b=(1.0, 0.0), c=(0.0, 1.0), n=2, decimals=10)[source]#
Bases:
Mesh
A triangular shaped 2dmesh with quads and
n
points at the edges of the three subquadrilaterals. Parameters:
a (2tuple of float, optional) – First end point of the mesh (default is (0.0, 0.0)).
b (2tuple of float, optional) – Second end point of the mesh (default is (1.0, 0.0)).
c (2tuple of float, optional) – Third end point of the mesh (default is (0.0, 1.0)).
n (int, optional) – Number of points per axis (default is 2).
decimals (int) – Decimals used for rounding point coordinates to avoid nonconnected sections (default is 10).
Examples
>>> import felupe as fem >>> >>> mesh = fem.mesh.Triangle(a=(0.3, 0.2), b=(1.2, 0.1), c=(0.1, 0.9), n=3) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 19 Number of cells: quad: 12
>>> mesh.points array([[0.1 , 0.9 ], [0.15 , 0.725 ], [0.2 , 0.55 ], [0.25 , 0.375 ], [0.3 , 0.2 ], [0.36666667, 0.475 ], [0.37083333, 0.5875 ], [0.375 , 0.7 ], [0.44583333, 0.325 ], [0.525 , 0.175 ], [0.53333333, 0.4 ], [0.59166667, 0.45 ], [0.64166667, 0.275 ], [0.65 , 0.5 ], [0.75 , 0.15 ], [0.78333333, 0.2875 ], [0.925 , 0.3 ], [0.975 , 0.125 ], [1.2 , 0.1 ]])
>>> mesh.cells array([[14, 12, 8, 9], [12, 10, 5, 8], [ 9, 8, 3, 4], [ 8, 5, 2, 3], [18, 16, 15, 17], [16, 13, 11, 15], [17, 15, 12, 14], [15, 11, 10, 12], [10, 11, 6, 5], [11, 13, 7, 6], [ 5, 6, 1, 2], [ 6, 7, 0, 1]])
 class felupe.mesh.RectangleArbitraryOrderQuad(a=(0.0, 0.0), b=(1.0, 1.0), order=2)[source]#
Bases:
Rectangle
A rectangular 2dmesh with an arbitrarrorder Lagrange quad between
a
andb
.
 class felupe.mesh.CubeArbitraryOrderHexahedron(a=(0.0, 0.0, 0.0), b=(1.0, 1.0, 1.0), order=2)[source]#
Bases:
Cube
A rectangular 2dmesh with an arbitrarrorder Lagrange hexahedron between
a
andb
.
 felupe.mesh.add_midpoints_edges(points, cells, cell_type, cell_type_new=None)[source]#
Add midpoints on edges for given points and cells and update cell_type accordingly.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
cell_type_new (str or None, optional) – A string in VTKconvention that specifies the new cell type (default is None). If None, the cell type is chosen automatically.
 Returns:
points (ndarray) – Modified point coordinates.
cells (ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
Convert a mesh of hexahedrons to quadratic hexahedrons by inserting midpoints on the cell edges.
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=6) >>> mesh_with_midpoints_edges = fem.mesh.add_midpoints_edges(mesh) >>> >>> plotter = mesh_with_midpoints_edges.plot( >>> plotter=mesh.plot(), style="points", color="black") >>> plotter.show()
>>> mesh_with_midpoints_edges <felupe Mesh object> Number of points: 96 Number of cells: quad8: 25
See also
felupe.Mesh.add_midpoints_edges
Add midpoints on edges for given points and cells and update cell_type accordingly.
 felupe.mesh.add_midpoints_faces(points, cells, cell_type, cell_type_new=None)[source]#
Add midpoints on faces for given points and cells and update cell_type accordingly.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
cell_type_new (str or None, optional) – A string in VTKconvention that specifies the new cell type (default is None). If None, the cell type is chosen automatically.
 Returns:
points (ndarray) – Modified point coordinates.
cells (ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=6) >>> mesh_with_midpoints_faces = fem.mesh.add_midpoints_faces( >>> mesh, cell_type_new="quad" >>> ) >>> >>> plotter = mesh_with_midpoints_faces.plot( >>> plotter=mesh.plot(), style="points", color="black" >>> ).show()
>>> mesh_with_midpoints_faces <felupe Mesh object> Number of points: 36 Number of cells: quad: 25
See also
felupe.Mesh.add_midpoints_faces
Add midpoints on faces for given points and cells and update cell_type accordingly.
 felupe.mesh.add_midpoints_volumes(points, cells, cell_type, cell_type_new=None)[source]#
Add midpoints on volumes for given points and cells and update cell_type accordingly.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
cell_type_new (str or None, optional) – A string in VTKconvention that specifies the new cell type (default is None). If None, the cell type is chosen automatically.
 Returns:
points (ndarray) – Modified point coordinates.
cells (ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> mesh_with_midpoints_volumes = fem.mesh.add_midpoints_volumes( >>> mesh, cell_type_new="hexahedron9" >>> ) >>> >>> plotter = mesh.plot(opacity=0.5) >>> plotter.add_points(mesh_with_midpoints_volumes.points, color="black") >>> plotter.show()
>>> mesh_with_midpoints_volumes <felupe Mesh object> Number of points: 341 Number of cells: hexahedron9: 125
See also
felupe.Mesh.add_midpoints_volumes
Add midpoints on volumes for given points and cells and update cell_type accordingly.
 felupe.mesh.collect_edges(points, cells, cell_type)[source]#
Collect all unique edges, calculate and return midpoints on edges as well as the additional cells array.
See also
felupe.mesh.add_midpoints_edges
Add midpoints on cell edges for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_edges
Add midpoints on cell edges for given points and cells and update cell_type accordingly.
 felupe.mesh.collect_faces(points, cells, cell_type)[source]#
Collect all unique faces, calculate and return midpoints on faces as well as the additional cells array.
See also
felupe.mesh.add_midpoints_faces
Add midpoints on cell faces for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_faces
Add midpoints on cell faces for given points and cells and update cell_type accordingly.
 felupe.mesh.collect_volumes(points, cells, cell_type)[source]#
Collect all volumes, calculate and return midpoints on volumes as well as the additional cells array.
See also
felupe.mesh.add_midpoints_volumes
Add midpoints on cell volumes for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_volumes
Add midpoints on cell volumes for given points and cells and update cell_type accordingly.
 felupe.mesh.concatenate(meshes)[source]#
Join a sequence of meshes with identical cell types.
Notes
The
points
arrays are vertically stacked. Offsets are added to thecells
 arrays of the meshes to refer to the original points.Examples
Two quad meshes should be joined (merged) into a single mesh.
>>> import felupe as fem >>> >>> rect1 = fem.Rectangle(n=11) >>> rect2 = fem.Rectangle(a=(0.9, 0), b=(1.9, 1), n=11) >>> >>> mesh = fem.mesh.concatenate([rect1, rect2]) >>> mesh.plot(opacity=0.6).show()
Each mesh contains 121 points and 100 cells.
>>> rect1 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
>>> rect2 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
These two meshes are stored in a
Mesh
. Note that there are duplicate points and cells in the joined mesh.>>> mesh <felupe Mesh object> Number of points: 242 Number of cells: quad: 200
 felupe.mesh.convert(points, cells, cell_type, order=0, calc_points=False, calc_midfaces=False, calc_midvolumes=False)[source]#
Convert a mesh to a given order. Only conversions to
order=0
andorder=2
are supported. This function supports meshes with cell types"triangle"
,"tetra"
,"quad"
and"hexahedron"
. Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type. Must be one of
"triangle"
,"tetra"
,"quad"
or"hexahedron"
.order (int, optional) – The order of the converted mesh (default is 0). If 0, the pointsarray will be of shape
(ncells, dim)
. If 0 andcalc_points
is True, the mean of all points per cell is evaluated. If 0 andcalc_points
is False, the points array is filled with zeros. If 2, at least midpoints on cell edges are added to the mesh. If 2 andcalc_midfaces
is True, midpoints on cell faces are also added. If 2 andcalc_midvolumes
is True, midpoints on cell volumes are also added. Raises an error if not 0 or 2.calc_points (bool, optional) – Flag to return the mean of all points per cell if
order=0
(default is False). If False, the pointsarray is filled with zeros.calc_midfaces (bool, optional) – Flag to add midpoints on cell faces if
order=2
(default is False).calc_midvolumes (bool, optional) – Flag to add midpoints on cell volumes if
order=2
(default is False).
 Returns:
points (ndarray) – Modified point coordinates.
cells (list or ndarray) – Converted cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
Convert a mesh of hexahedrons to quadratic hexahedrons by inserting midpoints on the cell edges.
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=6) >>> mesh2 = fem.mesh.convert(mesh, order=2) >>> >>> plotter = mesh2.plot(plotter=mesh.plot(), style="points", color="black") >>> plotter.show()
>>> mesh2 <felupe Mesh object> Number of points: 96 Number of cells: quad8: 25
See also
felupe.mesh.add_midpoints_edges
Add midpoints on edges for given points and cells and update cell_type accordingly.
felupe.mesh.add_midpoints_faces
Add midpoints on faces for given points and cells and update cell_type accordingly.
felupe.mesh.add_midpoints_volumes
Add midpoints on volumes for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_edges
Add midpoints on edges for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_faces
Add midpoints on faces for given points and cells and update cell_type accordingly.
felupe.Mesh.add_midpoints_volumes
Add midpoints on volumes for given points and cells and update cell_type accordingly.
 felupe.mesh.dual(points, cells, cell_type, points_per_cell=None, disconnect=True, calc_points=False, offset=0, npoints=None)[source]#
Create a new dual mesh with given points per cell.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
points_per_cell (int or None, optional) – Number of points per cell, must be equal or lower than
cells.shape[1]
( default is None). If None, all points per cell are considered for the dual mesh.disconnect (bool, optional) – A flag to disconnect the mesh (each cell has its own points). Default is True.
calc_points (bool, optional) – A flag to calculate the point coordinates for the dual mesh (default is False). If False, the points array is filled with zeros.
offset (int, optional) – An offset to be added to the cells array (default is 0).
npoints (int or None, optional) – Number of points for the dual mesh. If the given number of points is greater than
npoints * points_per_cell
, then the missing points are added to the points array (filled with zeros). Default is None.
 Returns:
points (ndarray) – Modified point coordinates.
cells (list or ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Notes
Note
The points array of the dual mesh always has a shape of
(npoints * points_per_cell, dim)
.Examples
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=5).add_midpoints_edges() >>> region = fem.RegionQuadraticQuad(mesh=mesh) >>> >>> mesh_dual = fem.mesh.dual(mesh, points_per_cell=1, disconnect=False) >>> region_dual = fem.RegionConstantQuad( >>> mesh_dual, quadrature=region.quadrature, grad=False >>> ) >>> >>> displacement = fem.FieldPlaneStrain(region, dim=2) >>> pressure = fem.Field(region_dual) >>> field = fem.FieldContainer([displacement, pressure])
See also
felupe.Mesh.dual
Create a new dual mesh with given points per cell.
 felupe.mesh.expand(points, cells, cell_type, n=11, z=1, axis=1, expand_dim=True)[source]#
Expand a 0dPoint to a 1dLine, a 1dLine to a 2dQuad or a 2dQuad to a 3dHexahedron Mesh.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
n (int, optional) – Number of npoint repetitions or (n1)cell repetitions, default is 11. Must be greater or equal 0.
z (float or ndarray, optional) – Total expansion as float (edge length in expand direction is
z / (n  1)
), default is 1. Optionally, if an array is passed these entries are taken as expansion andn
is ignored.axis (int, optional) – Axis of expansion (default is 1).
expand_dim (bool, optional) – Expand the dimension of the point coordinates (default is True).
 Returns:
points (ndarray) – Modified point coordinates.
cells (ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
Expand a rectangle to a cube.
>>> import felupe as fem >>> >>> rect = fem.Rectangle(n=4) >>> cube = fem.mesh.expand(rect, n=7, z=2) >>> >>> cube.plot().show()
>>> cube <felupe Mesh object> Number of points: 112 Number of cells: hexahedron: 54
See also
felupe.Mesh.expand
Expand a 0dPoint to a 1dLine, a 1dLine to a 2dQuad or a 2dQuad to a 3dHexahedron Mesh.
 felupe.mesh.fill_between(mesh, other_mesh, n=11)[source]#
Fill a 2dQuad Mesh between two 1dLine Meshes, embedded in 2dspace, or a 3dHexahedron Mesh between two 2dQuad Meshes, embedded in 3dspace, by expansion. Both meshes must have equal number of points and cells. The cellsarray is taken from the first mesh.
 Parameters:
mesh (felupe.Mesh) – The base line or quadmesh.
other_mesh (felupe.Mesh) – The other line or quadmesh.
n (int or ndarray) – Number of npoint repetitions or (n1)cell repetitions, (default is 11). If an array is given, then its values are used for the relative positions in a reference configuration (1, 1) between the two meshes.
 Returns:
mesh – The expanded mesh.
 Return type:
Examples
>>> import felupe as fem >>> >>> inner = fem.mesh.revolve(fem.Point(1)).expand(z=0.4).translate(0.2, axis=2) >>> outer = fem.mesh.revolve(fem.Point(2), phi=160).rotate( >>> axis=2, angle_deg=20 >>> ).expand(z=1.2) >>> mesh = fem.mesh.fill_between(inner, outer, n=6) >>> >>> mesh.plot().show()
See also
felupe.Mesh.fill_between
Fill a 2dQuad Mesh between two 1dLine Meshes, embedded in 2dspace, or a 3dHexahedron Mesh between two 2dQuad Meshes, embedded in 3dspace, by expansion.
 felupe.mesh.flip(points, cells, cell_type, mask=None)[source]#
Ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
mask (list, ndarray or None, optional) – Boolean mask for selected cells to flip (default is None). If None, all cells are selected to be flipped.
 Returns:
points (ndarray) – Point coordinates.
cells (ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
A quad mesh with negative cell volumes occurs if one coordinate axis is multiplied by 1. The error pops up if a region is created with this mesh.
>>> import numpy as np >>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=3) >>> mesh.update(points=mesh.points * np.array([[1, 1]])) >>> region = fem.RegionQuad(mesh) UserWarning: Negative volumes for cells [0 1 2 3] Try ``mesh.flip(np.any(region.dV < 0, axis=0))`` and recreate the region. warnings.warn(message_negative_volumes)
The sum of the differential volumes \(V = \sum_c \sum_q dV_{qc}\) is evaluated to 1.0.
>>> region.dV.sum() 1.0
Let’s try to fix the mesh.
>>> mesh.cells array([[0, 1, 4, 3], [1, 2, 5, 4], [3, 4, 7, 6], [4, 5, 8, 7]])
The cells array is rearranged to ensure positive cell volumes.
>>> mesh_fixed = fem.mesh.flip(mesh) >>> mesh_fixed.cells array([[3, 4, 1, 0], [4, 5, 2, 1], [6, 7, 4, 3], [7, 8, 5, 4]])
A region now correctly evaluates the total volume of the mesh to 1.0.
>>> region_fixed = fem.RegionQuad(mesh_fixed) >>> region_fixed.dV.sum() 1.0
See also
felupe.Mesh.flip
Ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.
 felupe.mesh.merge_duplicate_cells(points, cells, cell_type)[source]#
Merge duplicate cells of a Mesh.
 Parameters:
 Returns:
points (ndarray) – Point coordinates.
cells (list or ndarray) – Cells with merged duplicate cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Notes
Warning
This function resorts cells.
Note
This function does not merge duplicate points.
Examples
Two quad meshes to be merged overlap some cells. Merge these duplicated points and update the cells.
>>> import felupe as fem >>> >>> rect1 = fem.Rectangle(n=11) >>> rect2 = fem.Rectangle(a=(0.9, 0), b=(1.9, 1), n=11) >>> >>> container = fem.MeshContainer([rect1, rect2]) >>> stack = fem.mesh.stack(container.meshes) >>> mesh = fem.mesh.merge_duplicate_points(stack) >>> >>> mesh.plot(opacity=0.6).show()
Each mesh contains 121 points and 100 cells.
>>> rect1 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
>>> rect2 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
These two meshes are now stored in a
MeshContainer
.>>> container <felupe mesh container object> Number of points: 242 Number of cells: quad: 100 quad: 100
The meshes of the mesh container are
stacked
.>>> stack <felupe Mesh object> Number of points: 242 Number of cells: quad: 200
After merging the duplicated points and cells, the number of points is reduced but the number of cells is unchanged.
>>> mesh <felupe Mesh object> Number of points: 220 Number of cells: quad: 200
Note
The
MeshContainer
may be directly created withmerge=True
. This enforcesmerge_duplicate_points()
for the shared points array of the container.The duplicate cells are merged in a second step.
>>> merged = fem.mesh.merge_duplicate_cells(mesh) >>> merged <felupe Mesh object> Number of points: 220 Number of cells: quad: 190
See also
felupe.Mesh.merge_duplicate_points
Merge duplicate points of a Mesh.
felupe.Mesh.merge_duplicate_cells
Merge duplicate cells of a Mesh.
felupe.MeshContainer
A container which operates on a list of meshes with identical dimensions.
 felupe.mesh.merge_duplicate_points(points, cells, cell_type, decimals=None)[source]#
Merge duplicate points and update cells of a Mesh.
 Parameters:
 Returns:
points (ndarray) – Modified point coordinates.
cells (list or ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Notes
Warning
This function resorts points.
Note
This function does not merge duplicate cells.
Examples
Two quad meshes to be merged overlap some points. Merge these duplicated points and update the cells. .. pyvistaplot:
:includesource: True >>> import felupe as fem >>> >>> rect1 = fem.Rectangle(n=11) >>> rect2 = fem.Rectangle(a=(0.9, 0), b=(1.9, 1), n=11) >>> >>> container = fem.MeshContainer([rect1, rect2]) >>> stack = fem.mesh.stack(container.meshes) >>> mesh = fem.mesh.merge_duplicate_points(stack) >>> >>> mesh.plot(opacity=0.6).show()
Each mesh contains 121 points and 100 cells.
>>> rect1 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
>>> rect2 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
These two meshes are now stored in a
MeshContainer
.>>> container <felupe mesh container object> Number of points: 242 Number of cells: quad: 100 quad: 100
The meshes of the mesh container are
stacked
.>>> stack <felupe Mesh object> Number of points: 242 Number of cells: quad: 200
After merging the duplicated points and cells, the number of points is reduced but the number of cells is unchanged.
>>> mesh <felupe Mesh object> Number of points: 220 Number of cells: quad: 200
Note
The
MeshContainer
may be directly created withmerge=True
. This enforcesmerge_duplicate_points()
for the shared points array of the container.See also
felupe.Mesh.merge_duplicate_points
Merge duplicated points and update cells of a Mesh.
felupe.MeshContainer
A container which operates on a list of meshes with identical dimensions.
 felupe.mesh.mirror(points, cells, cell_type, normal=[1, 0, 0], centerpoint=[0, 0, 0], axis=None)[source]#
Mirror points by plane normal and ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
normal (list or ndarray, optional) – Mirrorplane normal vector (default is [1, 0, 0]).
centerpoint (list or ndarray, optional) – Centerpoint coordinates on the mirror plane (default is [0, 0, 0]).
axis (int or None, optional) – Mirror axis (default is None).
 Returns:
points (ndarray) – Modified point coordinates.
cells (ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
>>> import felupe as fem >>> >>> mesh = fem.Circle(sections=[0, 90, 180], n=5) >>> mesh.plot().show()
>>> import felupe as fem >>> >>> mesh = fem.Circle(sections=[0, 90, 180], n=5) >>> fem.mesh.mirror(mesh, normal=[0, 1, 0]).plot().show()
See also
felupe.Mesh.mirror
Mirror points by plane normal and ensure positive cell volumes for tria, tetra, quad and hexahedron cell types.
 felupe.mesh.read(filename, file_format=None, cellblock=None, dim=None, merge=False, decimals=None)[source]#
Read a mesh from a file using
meshio.read()
and create aMeshContainer
. Parameters:
filename (str) – The filename of the mesh file.
file_format (str or None, optional) – The file format of the mesh file (default is None).
cellblock (list of int or None, optional) – Read only a subset of the cellblocks from the mesh file (default is None). If None, all cell blocks are added to the
MeshContainer
.dim (int or None, optional) – If provided, the dimension to trim the points array to (default is None). If None, the points array is unchanged.
merge (bool, optional) – Flag to merge duplicate mesh points. This changes the cells arrays of the meshes. Default is False.
decimals (float or None, optional) – Precision decimals for merging duplicated mesh points. Only relevant if merge=True. Default is None.
 Returns:
A mesh container created with
meshio.read()
. Return type:
Examples
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=3) >>> mesh.write(filename="mesh.xdmf")
>>> container = fem.mesh.read("mesh.xdmf") >>> container <felupe mesh container object> Number of points: 9 Number of cells: quad: 4
>>> container.meshes[0] <felupe Mesh object> Number of points: 9 Number of cells: quad: 4
See also
meshio.read
Reads an unstructured mesh with added data.
felupe.Mesh.write
Write the mesh to a file.
 felupe.mesh.revolve(points, cells, cell_type, n=11, phi=180, axis=0, expand_dim=True)[source]#
Revolve a 0dPoint to a 1dLine, a 1dLine to 2dQuad or a 2dQuad to a 3dHexahedron Mesh.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
n (int, optional) – Number of npoint revolutions (or (n1) cell revolutions), default is 11.
phi (float or ndarray, optional) – Revolution angle in degree (default is 180).
axis (int, optional) – Revolution axis (default is 0).
expand_dim (bool, optional) – Expand the dimension of the point coordinates (default is True).
 Returns:
points (ndarray) – Modified point coordinates.
cells (list or ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
Revolve a cylinder from a rectangle.
>>> import felupe as fem >>> >>> rect = fem.Rectangle(a=(0, 4), b=(3, 5), n=(10, 4)) >>> mesh = fem.mesh.revolve(rect, n=11, phi=180, axis=0) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 440 Number of cells: hexahedron: 270
See also
felupe.Mesh.revolve
Revolve a 2dQuad to a 3dHexahedron Mesh.
 felupe.mesh.rotate(points, cells, cell_type, angle_deg, axis, center=None, mask=None)[source]#
Rotate a Mesh.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
angle_deg (int) – Rotation angle in degree.
axis (int) – Rotation axis.
center (list or ndarray or None, optional) – Center point coordinates (default is None).
mask (ndarray or None, optional) – A boolean mask to select points which are rotated (default is None).
 Returns:
points (ndarray) – Modified point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
Rotate a rectangle in the xyplane by 35 degree.
>>> import felupe as fem >>> >>> rect = fem.Rectangle(b=(3, 1), n=(10, 4)) >>> mesh = fem.mesh.rotate(rect, angle_deg=35, axis=2, center=[1.5, 0.5]) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 40 Number of cells: quad: 27
See also
felupe.Mesh.rotate
Rotate a Mesh.
 felupe.mesh.runouts(points, cells, cell_type, values=[0.1, 0.1], centerpoint=[0, 0, 0], axis=0, exponent=5, mask=slice(None, None, None), normalize=False)[source]#
Add simple rubberrunouts for realistic rubbermetal structures.
 Parameters:
points (list or ndarray) – Original point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str) – A string in VTKconvention that specifies the cell type.
values (list or ndarray, optional) – Relative amount of runouts (per coordinate) perpendicular to the axis (default is 10% per coordinate, i.e. [0.1, 0.1]).
centerpoint (list or ndarray, optional) – Centerpoint coordinates (default is [0, 0, 0]).
axis (int or None, optional) – Axis (default is 0).
exponent (int, optional) – Positive exponent to control the shape of the runout. The higher the exponent, the steeper the transition (default is 5).
mask (list or None, optional) – List of points to be considered (default is None).
normalize (bool, optional) – Normalize the runouts to create indents, i.e. maintain the original shape at the ends (default is False).
 Returns:
points (ndarray) – Modified point coordinates.
cells (ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
>>> import felupe as fem >>> >>> rect = fem.Rectangle(a=(3, 1), b=(3, 1), n=(31, 11)) >>> mesh = fem.mesh.runouts(rect, axis=1, values=[0.2], normalize=True) >>> >>> mesh.plot().show()
>>> import felupe as fem >>> >>> cube = fem.Cube(a=(3, 2, 1), b=(3, 2, 1), n=(31, 21, 11)) >>> mesh = fem.mesh.runouts(cube, axis=2, values=[0.1, 0.3], normalize=True) >>> >>> mesh.plot().show()
See also
felupe.Mesh.add_runouts
Add simple rubberrunouts for realistic rubbermetal structures.
 felupe.mesh.stack(meshes)[source]#
Stack cellblocks from meshes with identical pointsarray and celltypes.
 Parameters:
meshes (list of Mesh) – A list with meshes. The
points
array is taken from the first mesh in the list. Returns:
The stacked mesh.
 Return type:
Notes
The
points
array is taken from the first mesh. Thepoints
arrays of all meshes must be identical. Thecells
array of the stacked mesh is created by a vertical stack of thecells
arrays.Examples
Two quad meshes with identical point arrays should be stacked into a single mesh.
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=11) >>> rect1, rect2 = mesh.copy(), mesh.copy() >>> rect1.update(cells=mesh.cells[: 40]) >>> rect2.update(cells=mesh.cells[50:]) >>> >>> mesh = fem.mesh.stack([rect1, rect2]) >>> mesh.plot().show()
>>> mesh <felupe Mesh object> Number of points: 121 Number of cells: quad: 90
See also
felupe.MeshContainer.stack
Stack cellblocks with same celltypes into a single mesh.
 felupe.mesh.sweep(points, cells, cell_type, decimals=None)#
Merge duplicate points and update cells of a Mesh.
 Parameters:
 Returns:
points (ndarray) – Modified point coordinates.
cells (list or ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Notes
Warning
This function resorts points.
Note
This function does not merge duplicate cells.
Examples
Two quad meshes to be merged overlap some points. Merge these duplicated points and update the cells. .. pyvistaplot:
:includesource: True >>> import felupe as fem >>> >>> rect1 = fem.Rectangle(n=11) >>> rect2 = fem.Rectangle(a=(0.9, 0), b=(1.9, 1), n=11) >>> >>> container = fem.MeshContainer([rect1, rect2]) >>> stack = fem.mesh.stack(container.meshes) >>> mesh = fem.mesh.merge_duplicate_points(stack) >>> >>> mesh.plot(opacity=0.6).show()
Each mesh contains 121 points and 100 cells.
>>> rect1 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
>>> rect2 <felupe Mesh object> Number of points: 121 Number of cells: quad: 100
These two meshes are now stored in a
MeshContainer
.>>> container <felupe mesh container object> Number of points: 242 Number of cells: quad: 100 quad: 100
The meshes of the mesh container are
stacked
.>>> stack <felupe Mesh object> Number of points: 242 Number of cells: quad: 200
After merging the duplicated points and cells, the number of points is reduced but the number of cells is unchanged.
>>> mesh <felupe Mesh object> Number of points: 220 Number of cells: quad: 200
Note
The
MeshContainer
may be directly created withmerge=True
. This enforcesmerge_duplicate_points()
for the shared points array of the container.See also
felupe.Mesh.merge_duplicate_points
Merge duplicated points and update cells of a Mesh.
felupe.MeshContainer
A container which operates on a list of meshes with identical dimensions.
 felupe.mesh.translate(points, cells, cell_type, move, axis)[source]#
Translate (move) a Mesh along a given axis.
 Parameters:
 Returns:
points (ndarray) – Modified point coordinates.
cells (list or ndarray) – Original pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
>>> import felupe as fem >>> >>> mesh = fem.Circle(n=6) >>> mesh.points.min(axis=0), mesh.points.max(axis=0) (array([0., 0., 0.]), array([1., 1., 1.]))
>>> translated = fem.mesh.translate(mesh, 0.3, axis=1) >>> translated.points.min(axis=0), translated.points.max(axis=0) (array([0. , 0.3, 0. ]), array([1. , 1.3, 1. ]))
See also
felupe.Mesh.translate
Translate (move) a Mesh along a given axis.
 felupe.mesh.triangulate(points, cells, cell_type, mode=3)[source]#
Triangulate a quad or a hex mesh.
 Parameters:
 Returns:
points (ndarray) – Modified point coordinates.
cells (ndarray) – Modified pointconnectivity of cells.
cell_type (str or None) – A string in VTKconvention that specifies the cell type.
Examples
Use
mode=0
to convert a mesh of hexahedrons into tetrahedrons [1]_.>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> triangulated = fem.mesh.triangulate(mesh, mode=0) >>> triangulated.plot().show()
Use
mode=3
to convert a mesh of hexahedrons into tetrahedrons [1]_.>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> triangulated = fem.mesh.triangulate(mesh, mode=3) >>> triangulated.plot().show()
References
[1] Dompierre, J., Labbé, P., Vallet, M. G., & Camarero, R. (1999). How to Subdivide Pyramids, Prisms, and Hexahedra into Tetrahedra. IMR, 99, 195.
See also
felupe.Mesh.triangulate
Triangulate a quad or a hex mesh.
