Field#

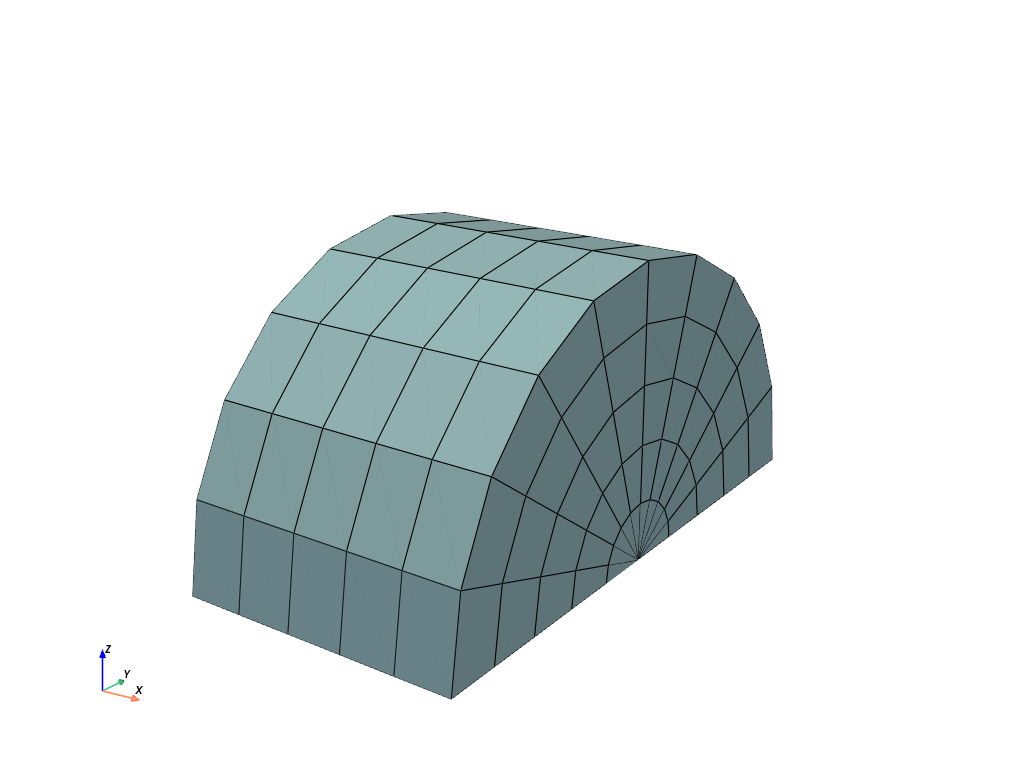

A FieldContainer
with predefined fields is created with:

A field container is created with a list of one or more fields.

A container for fields which holds a list or a tuple of
Available kinds of fields:

A Field on points of a

An axisymmetric

A plane strain

A dual field on points of a
Detailed API Reference
 class felupe.FieldContainer(fields)[source]#
A container for fields which holds a list or a tuple of
Field
instances. Parameters:
fields (list or tuple of
Field
, :class:``~felupe.FieldAxisymmetric` or :class:``~felupe.FieldPlaneStrain`) – List with fields. The region is linked to the first field.
 evaluate#
Methods to evaluate the deformation gradient and strain measures, see
EvaluateFieldContainer
for details on the provided methods.
Examples
>>> import felupe as fem >>> >>> mesh = fem.Cube(n=3) >>> region = fem.RegionHexahedron(mesh) >>> region_dual = fem.RegionConstantHexahedron(mesh.dual(points_per_cell=1)) >>> displacement = fem.Field(region, dim=3) >>> pressure = fem.Field(region_dual) >>> field = fem.FieldContainer([displacement, pressure]) >>> field <felupe FieldContainer object> Number of fields: 2 Dimension of fields: Field: 3 Field: 1
A new
FieldContainer
is also created by one of the logicaland combinations of aField
,FieldAxisymmetric
,FieldPlaneStrain
orFieldContainer
.>>> displacement & pressure <felupe FieldContainer object> Number of fields: 2 Dimension of fields: Field: 3 Field: 1
>>> volume_ratio = fem.Field(region_dual) >>> field & volume_ratio # displacement & pressure & volume_ratio <felupe FieldContainer object> Number of fields: 3 Dimension of fields: Field: 3 Field: 1 Field: 1
See also
felupe.Field
Field on points of a
Region
with dimensiondim
and initial pointvalues
.felupe.FieldAxisymmetric
An axisymmetric
Field
on points of a two dimensionalRegion
with dimensiondim
(default is 2) and initial pointvalues
(default is 0).felupe.FieldPlaneStrain
A plane strain
Field
on points of a two dimensionalRegion
with dimensiondim
(default is 2) and initial pointvalues
(default is 0).
 extract(grad=True, sym=False, add_identity=True, dtype=None, out=None, order='C')[source]#
Generalized extraction method which evaluates either the gradient or the field values at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is evaluated and/or the identity matrix is added to the gradient.
 Parameters:
grad (bool or list of bool, optional) – Flag(s) for gradient evaluation(s). A boolean value is appplied on the first field only and all other fields are extracted with
grad=False
. To enable or disable gradients perfield, use a list of boolean values instead (default is True).sym (bool, optional) – Flag for symmetric part if the gradient is evaluated (default is False).
add_identity (bool, optional) – Flag for the addition of the identity matrix if the gradient is evaluated (default is True).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
orders (str or list of str, optional) – Controls the memory layout of the outputs. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
(Symmetric) gradient or interpolated field values evaluated at the integration points of each cell in the region.
 Return type:
tuple of ndarray
Notes
If the gradient is not requested, the interpolation method returns the field values evaluated at the numeric integration points
q
for each cellc
in the region (socalled trailing axes).\[u_{i(qc)} = \hat{u}_{ai}\ h_{a(qc)}\]On the other hand, the gradient method returns the gradient of the field values w.r.t. the undeformed mesh point coordinates, evaluated at the integration points of all cells in the region.
\[\left( \frac{\partial u_i}{\partial X_J} \right)_{(qc)} = \hat{u}_{ai} \left( \frac{\partial h_a}{\partial X_J} \right)_{(qc)}\]See also
felupe.Field.interpolate
Interpolate field values located at meshpoints to the quadrature points in the region.
felupe.Field.grad
Gradient as partial derivative of field values w.r.t. undeformed coordinates.
 imshow(*args, ax=None, dpi=None, **kwargs)[source]#
Take a screenshot of the first field of the container, show the image data in a figure and return the ax.
 plot(*args, project=None, **kwargs)[source]#
Plot the first field of the container.
See also
felupe.Scene.plot
Plot method of a scene.
felupe.project
Project given values at quadraturepoints to meshpoints.
felupe.topoints
Shift given values at quadraturepoints to meshpoints.
 screenshot(*args, filename='field.png', transparent_background=None, scale=None, **kwargs)[source]#
Take a screenshot of the first field of the container.
See also
pyvista.Plotter.screenshot
Take a screenshot of a PyVista plotter.
 view(point_data=None, cell_data=None, cell_type=None, project=None)[source]#
View the field with optional given dicts of point and celldata items.
 Parameters:
point_data (dict or None, optional) – Additional pointdata dict (default is None).
cell_data (dict or None, optional) – Additional celldata dict (default is None).
cell_type (pyvista.CellType or None, optional) – Celltype of PyVista (default is None).
project (callable or None, optional) – Project internal celldata at quadraturepoints to meshpoints (default is None).
 Returns:
A object which provides visualization methods for
felupe.FieldContainer
. Return type:
felupe.ViewField
See also
felupe.ViewField
Visualization methods for
felupe.FieldContainer
.felupe.project
Project given values at quadraturepoints to meshpoints.
felupe.topoints
Shift given values at quadraturepoints to meshpoints.
 class felupe.field.EvaluateFieldContainer(field)[source]#
Methods to evaluate the deformation gradient and strain measures of a field container.
 Parameters:
field (FieldContainer) – A container for fields.
Examples
>>> import felupe as fem >>> >>> mesh = fem.Rectangle(n=4) >>> region = fem.RegionQuad(mesh) >>> field = fem.FieldContainer([fem.FieldPlaneStrain(region, dim=2)]) >>> >>> evaluate = fem.field.EvaluateFieldContainer(field) >>> F = evaluate.deformation_gradient() >>> >>> F.shape # (3, 3, nquadraturepoints, ncells) (3, 3, 4, 9)
>>> F[..., 0, 0] # deformation gradient of first cell, first quadrature point array([[1., 0., 0.], [0., 1., 0.], [0., 0., 1.]])
See also
felupe.FieldContainer
A container which holds one or multiple (mixed) fields.
 deformation_gradient()[source]#
Return the Deformation gradient tensor.
(1)#\[ \begin{align}\begin{aligned}\boldsymbol{F} &= \frac{\partial \boldsymbol{x}}{\partial \boldsymbol{X}}\\\boldsymbol{F} &= \sum_\alpha \lambda_\alpha \ \boldsymbol{n}_\alpha \otimes \boldsymbol{N}_\alpha\end{aligned}\end{align} \]
 green_lagrange_strain(tensor=True, asvoigt=False, n=0)[source]#
Return the GreenLagrange Lagrangian strain tensor or its principal values.
(2)#\[\boldsymbol{E} = \sum_\alpha \frac{1}{2} \left( \lambda_\alpha^2  1 \right) \ \boldsymbol{N}_\alpha \otimes \boldsymbol{N}_\alpha\] Parameters:
tensor (bool, optional) – Assemble and return the strain tensor if True or return its principal values only if False. Default is True.
asvoigt (bool, optional) – Return the symmetric strain tensor in reduced vector storage (default is False).
n (int, optional) – The index of the displacement field (default is 0).
 Returns:
The strain tensor or its principal values.
 Return type:
ndarray of shape (N, N, …) tensor, (N * (N + 1) / 2, …) asvoigt or (N, …) princ. values
See also
math.strain
Compute a Lagrangian strain tensor.
math.strain_stretch_1d
Compute the SethHill strains.
 log_strain(tensor=True, asvoigt=False, n=0)[source]#
Return the logarithmic Lagrangian strain tensor or its principal values.
(3)#\[\boldsymbol{E} = \sum_\alpha \ln(\lambda_\alpha) \ \boldsymbol{N}_\alpha \otimes \boldsymbol{N}_\alpha\] Parameters:
tensor (bool, optional) – Assemble and return the strain tensor if True or return its principal values only if False. Default is True.
asvoigt (bool, optional) – Return the symmetric strain tensor in reduced vector storage (default is False).
n (int, optional) – The index of the displacement field (default is 0).
 Returns:
The strain tensor or its principal values.
 Return type:
ndarray of shape (N, N, …) tensor, (N!, …) asvoigt or (N, …) princ. values
See also
math.strain_stretch_1d
Compute the SethHill strains.
math.strain
Compute a Lagrangian strain tensor.
 strain(fun=<function strain_stretch_1d>, tensor=True, asvoigt=False, n=0, **kwargs)[source]#
Return the Lagrangian strain tensor or its principal values.
(4)#\[\boldsymbol{E} = \sum_\alpha f_\alpha \left( \lambda_\alpha \right) \ \boldsymbol{N}_\alpha \otimes \boldsymbol{N}_\alpha\]By default, the SethHill strainstretch relation with a strain exponent of zero is used, see Eq. (5).
(5)#\[\boldsymbol{E} = \sum_\alpha \frac{1}{k} \left( \lambda_\alpha^k  1 \right) \ \boldsymbol{N}_\alpha \otimes \boldsymbol{N}_\alpha\] Parameters:
fun (callable, optional) – A callable for the onedimensional strainstretch relation. Its Signature must be
lambda stretch, **kwargs: strain
(default is the log. strain,strain_stretch_1d()
withk=0
).tensor (bool, optional) – Assemble and return the strain tensor if True or return its principal values only if False. Default is True.
asvoigt (bool, optional) – Return the symmetric strain tensor in reduced vector storage (default is False).
n (int, optional) – The index of the displacement field (default is 0).
**kwargs (dict, optional) – Optional keywordarguments are passed to the 1d strainstretch relation.
 Returns:
The strain tensor or its principal values.
 Return type:
ndarray of shape (N, N, …) tensor, (N!, …) asvoigt or (N, …) princ. values
See also
math.strain
Compute a Lagrangian strain tensor.
math.strain_stretch_1d
Compute the SethHill strains.
 class felupe.Field(region, dim=1, values=0.0, dtype=None, **kwargs)[source]#
A Field on points of a
Region
with dimensiondim
and initial pointvalues
. Parameters:
region (Region) – The region on which the field will be created.
dim (int, optional) – The dimension of the field (default is 1).
values (float or array) – A single value for all components of the field or an array of shape (region.mesh.npoints, dim). Default is 0.0.
dtype (datatype or None, optional) – Datatype of the array containing the field values.
**kwargs (dict, optional) – Extra class attributes for the field.
Notes
A slice of this field directly accesses the fieldvalues as 1darray. The interpolation method returns the field values evaluated at the numeric integration points
q
for each cellc
in the region (socalled trailing axes).\[u_{i(qc)} = \hat{u}_{ai}\ h_{a(qc)}\]The gradient method returns the gradient of the field values w.r.t. the undeformed mesh point coordinates, evaluated at the integration points of all cells in the region.
\[\left( \frac{\partial u_i}{\partial X_J} \right)_{(qc)} = \hat{u}_{ai} \left( \frac{\partial h_a}{\partial X_J} \right)_{(qc)}\]Examples
>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> region = fem.RegionHexahedron(mesh) >>> displacement = fem.Field(region, dim=3) >>> >>> u = displacement.interpolate() >>> dudX = displacement.grad()
To obtain deformationrelated quantities like the right CauchyGreen deformation tensor or the principal stretches, use the mathhelpers from FElupe. These functions operate on arrays with trailing axes.
\[\boldsymbol{C} = \boldsymbol{F}^T \boldsymbol{F}\]>>> from felupe.math import dot, transpose, eigvalsh, sqrt >>> >>> F = displacement.extract(grad=True, add_identity=True) >>> C = dot(transpose(F), F) >>> λ = sqrt(eigvalsh(C))
 as_container()[source]#
Create a
FieldContainer
with the field.
 extract(grad=True, sym=False, add_identity=True, dtype=None, out=None, order='C')[source]#
Generalized extraction method which evaluates either the gradient or the field values at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is evaluated and/or the identity matrix is added to the gradient.
 Parameters:
grad (bool, optional) – Flag for gradient evaluation (default is True).
sym (bool, optional) – Flag for symmetric part if the gradient is evaluated (default is False).
add_identity (bool, optional) – Flag for the addition of the identity matrix if the gradient is evaluated (default is True).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
(Symmetric) gradient or interpolated field values evaluated at the integration points of each cell in the region.
 Return type:
ndarray
See also
 grad(sym=False, dtype=None, out=None, order='C')[source]#
Gradient as partial derivative of field values w.r.t. undeformed coordinates, evaluated at the integration points of all cells in the region. Optionally, the symmetric part the gradient is evaluated.
\[\left( \frac{\partial u_i}{\partial X_J} \right)_{(qc)} = \hat{u}_{ai} \left( \frac{\partial h_a}{\partial X_J} \right)_{(qc)}\] Parameters:
sym (bool, optional) – Calculate the symmetric part of the gradient (default is False).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Gradient as partial derivative of field value components
i
at points w.r.t. the undeformed coordinatesj
, evaluated at the quadrature pointsq
of cellsc
in the region. Return type:
ndarray of shape (i, j, q, c)
 hess(dtype=None, out=None, order='C')[source]#
Hessian as second partial derivative of field values w.r.t. undeformed coordinates, evaluated at the integration points of all cells in the region.
\[\left( \frac{\partial^2 u_i}{\partial X_J~\partial X_K} \right)_{(qc)} = \hat{u}_{ai} \left( \frac{\partial^2 h_a}{\partial X_J~\partial X_K} \right)_{(qc)}\] Parameters:
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Hessian as partial derivative of field value components
i
at points w.r.t. the undeformed coordinatesj
andk
, evaluated at the quadrature pointsq
of cellsc
in the region. Return type:
ndarray of shape (i, j, k, q, c)
 interpolate(dtype=None, out=None, order='C')[source]#
Interpolate field values located at meshpoints to the quadrature points
q
of cellsc
in the region.\[u_{i(qc)} = \hat{u}_{ai}\ h_{a(qc)}\] Parameters:
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Interpolated field value components
i
, evaluated at the quadrature pointsq
of each cellc
in the region. Return type:
ndarray of shape (i, q, c)
 class felupe.FieldAxisymmetric(region, dim=2, values=0.0, dtype=None)[source]#
An axisymmetric
Field
on points of a twodimensionalRegion
with dimensiondim
(default is 2) and initial pointvalues
(default is 0). Parameters:
region (Region) – The region on which the field will be created.
dim (int, optional) – The dimension of the field (default is 2).
values (float or array, optional) – A single value for all components of the field or an array of shape (region.mesh.npoints, dim)`. Default is 0.0.
dtype (datatype or None, optional) – Datatype of the array containing the field values.
Notes
component 1 = axial component
component 2 = radial component
x_2 (radial direction) ^  _  / \ > x_1 (axial rotation axis) \_^
This is a modified
Field
in which the radial coordinates are evaluated at the numeric integration pointsq
for each cellc
. Thegrad()
method is modified in such a way that it does not only contain the inplane 2dgradient but also the circumferential stretch, see Eq. (6).(6)#\[\begin{split}\frac{\partial \boldsymbol{u}}{\partial \boldsymbol{X}} = \begin{bmatrix} \left( \frac{\partial \boldsymbol{u}}{\partial \boldsymbol{X}} \right)_{2d} & \boldsymbol{0} \\ \boldsymbol{0}^T & \frac{u_r}{R} \end{bmatrix}\end{split}\]See also
felupe.Field
Field on points of a
Region
with dimensiondim
and initial pointvalues
.
 as_container()#
Create a
FieldContainer
with the field.
 copy()#
Return a copy of the field.
 extract(grad=True, sym=False, add_identity=True, dtype=None, out=None, order='C')#
Generalized extraction method which evaluates either the gradient or the field values at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is evaluated and/or the identity matrix is added to the gradient.
 Parameters:
grad (bool, optional) – Flag for gradient evaluation (default is True).
sym (bool, optional) – Flag for symmetric part if the gradient is evaluated (default is False).
add_identity (bool, optional) – Flag for the addition of the identity matrix if the gradient is evaluated (default is True).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
(Symmetric) gradient or interpolated field values evaluated at the integration points of each cell in the region.
 Return type:
ndarray
See also
 fill(a)#
Fill all field values with a scalar value.
 grad(sym=False, dtype=None, out=None, order='C')[source]#
3Dgradient as partial derivative of field values at points w.r.t. the undeformed coordinates, evaluated at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is returned.
\[\begin{split}\frac{\partial \boldsymbol{u}}{\partial \boldsymbol{X}} = \begin{bmatrix} \left( \frac{\partial \boldsymbol{u}}{\partial \boldsymbol{X}} \right)_{2d} & \boldsymbol{0} \\ \boldsymbol{0}^T & \frac{u_r}{R} \end{bmatrix}\end{split}\] Parameters:
sym (bool, optional) – Calculate the symmetric part of the gradient (default is False).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Full 3Dgradient as partial derivative of field values at points w.r.t. undeformed coordinates, evaluated at the integration points of all cells in the region.
 Return type:
ndarray
 hess(dtype=None, out=None, order='C')#
Hessian as second partial derivative of field values w.r.t. undeformed coordinates, evaluated at the integration points of all cells in the region.
\[\left( \frac{\partial^2 u_i}{\partial X_J~\partial X_K} \right)_{(qc)} = \hat{u}_{ai} \left( \frac{\partial^2 h_a}{\partial X_J~\partial X_K} \right)_{(qc)}\] Parameters:
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Hessian as partial derivative of field value components
i
at points w.r.t. the undeformed coordinatesj
andk
, evaluated at the quadrature pointsq
of cellsc
in the region. Return type:
ndarray of shape (i, j, k, q, c)
 interpolate(dtype=None, out=None, order='C')[source]#
Interpolate field values located at meshpoints to the quadrature points
q
of cellsc
in the region.\[u_{i(qc)} = \hat{u}_{ai}\ h_{a(qc)}\] Parameters:
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Interpolated field value components
i
, evaluated at the quadrature pointsq
of each cellc
in the region. Return type:
ndarray of shape (i, q, c)
 class felupe.FieldPlaneStrain(region, dim=2, values=0.0, dtype=None)[source]#
A plane strain
Field
on points of a twodimensionalRegion
with dimensiondim
(default is 2) and initial pointvalues
(default is 0). Parameters:
region (Region) – The region on which the field will be created.
dim (int, optional) – The dimension of the field (default is 2).
values (float or array) – A single value for all components of the field or an array of shape (region.mesh.npoints, dim)`. Default is 0.0.
dtype (datatype or None, optional) – Datatype of the array containing the field values.
Notes
This is a modified
Field
for plane strain. Thegrad()
method is modified in such a way that the inplane 2dgradient is embedded in 3dspace, see Eq. (7).(7)#\[\begin{split}\frac{\partial \boldsymbol{u}}{\partial \boldsymbol{X}} = \begin{bmatrix} \left( \frac{\partial \boldsymbol{u}}{\partial \boldsymbol{X}} \right)_{2d} & \boldsymbol{0} \\ \boldsymbol{0}^T & 0 \end{bmatrix}\end{split}\]See also
felupe.Field
Field on points of a
Region
with dimensiondim
and initial pointvalues
.
 as_container()#
Create a
FieldContainer
with the field.
 copy()#
Return a copy of the field.
 extract(grad=True, sym=False, add_identity=True, dtype=None, out=None, order='C')#
Generalized extraction method which evaluates either the gradient or the field values at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is evaluated and/or the identity matrix is added to the gradient.
 Parameters:
grad (bool, optional) – Flag for gradient evaluation (default is True).
sym (bool, optional) – Flag for symmetric part if the gradient is evaluated (default is False).
add_identity (bool, optional) – Flag for the addition of the identity matrix if the gradient is evaluated (default is True).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
(Symmetric) gradient or interpolated field values evaluated at the integration points of each cell in the region.
 Return type:
ndarray
See also
 fill(a)#
Fill all field values with a scalar value.
 grad(sym=False, dtype=None, out=None, order='C')[source]#
3Dgradient as partial derivative of field values at points w.r.t. the undeformed coordinates, evaluated at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is returned.
 dudX(2d) : 0  dudX(planestrain) =  ..................  0 : 0
 Parameters:
sym (bool, optional) – Calculate the symmetric part of the gradient (default is False).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Full 3Dgradient as partial derivative of field values at points w.r.t. undeformed coordinates, evaluated at the integration points of all cells in the region.
 Return type:
ndarray
 hess(dtype=None, out=None, order='C')[source]#
3DHessian as second partial derivative of field values at points w.r.t. the undeformed coordinates, evaluated at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is returned.
 Parameters:
sym (bool, optional) – Calculate the symmetric part of the gradient (default is False).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Full 3Dhessian as second partial derivative of field values at points w.r.t. undeformed coordinates, evaluated at the integration points of all cells in the region.
 Return type:
ndarray
 interpolate(dtype=None, out=None, order='C')[source]#
Interpolate field values located at meshpoints to the quadrature points
q
of cellsc
in the region.\[u_{i(qc)} = \hat{u}_{ai}\ h_{a(qc)}\] Parameters:
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Interpolated field value components
i
, evaluated at the quadrature pointsq
of each cellc
in the region. Return type:
ndarray of shape (i, q, c)
 class felupe.FieldDual(region, dim=1, values=0.0, offset=0, npoints=None, mesh=None, disconnect=None, **kwargs)[source]#
A dual field on points of a
Region
with dimensiondim
and initial pointvalues
. Parameters:
region (Region) – The region on which the field will be created.
dim (int, optional) – The dimension of the field (default is 1).
values (float or array) – A single value for all components of the field or an array of shape (region.mesh.npoints, dim). Default is 0.0.
offset (int, optional) – Offset for cell connectivity of the dual mesh (default is 0).
npoints (int or None, optional) – Specified number of mesh points for the dual mesh (default is None).
mesh (Mesh or None, optional) – A mesh which is used for the dual region (default is None). If None, the mesh is taken from the region.
disconnect (bool or None, optional) – A flag to disconnect the dual mesh (default is None). If None, a disconnected mesh is used except for regions with quadratictriangle or tetra or MINI element formulations.
**kwargs (dict, optional) – Optional keyword arguments for the dual region.
Examples
>>> import felupe as fem >>> >>> mesh = fem.Cube(n=6) >>> region = fem.RegionHexahedron(mesh) >>> >>> displacement = fem.Field(region, dim=3) >>> pressure = fem.FieldDual(region) >>> >>> field = fem.FieldContainer([displacement, pressure]) >>> field <felupe FieldContainer object> Number of fields: 2 Dimension of fields: Field: 3 FieldDual: 1
See also
felupe.FieldContainer
A container which holds one or multiple (mixed) fields.
felupe.Field
Field on points of a
Region
with dimensiondim
and initial pointvalues
.felupe.FieldAxisymmetric
Axisymmetric field on points of a
Region
with dimensiondim
and initial pointvalues
.felupe.FieldPlaneStrain
Plane strain field on points of a
Region
with dimensiondim
and initial pointvalues
.felupe.mesh.dual
Create a dual
Mesh
.
 as_container()#
Create a
FieldContainer
with the field.
 copy()#
Return a copy of the field.
 extract(grad=True, sym=False, add_identity=True, dtype=None, out=None, order='C')#
Generalized extraction method which evaluates either the gradient or the field values at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is evaluated and/or the identity matrix is added to the gradient.
 Parameters:
grad (bool, optional) – Flag for gradient evaluation (default is True).
sym (bool, optional) – Flag for symmetric part if the gradient is evaluated (default is False).
add_identity (bool, optional) – Flag for the addition of the identity matrix if the gradient is evaluated (default is True).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
(Symmetric) gradient or interpolated field values evaluated at the integration points of each cell in the region.
 Return type:
ndarray
See also
 fill(a)#
Fill all field values with a scalar value.
 grad(sym=False, dtype=None, out=None, order='C')#
Gradient as partial derivative of field values w.r.t. undeformed coordinates, evaluated at the integration points of all cells in the region. Optionally, the symmetric part the gradient is evaluated.
\[\left( \frac{\partial u_i}{\partial X_J} \right)_{(qc)} = \hat{u}_{ai} \left( \frac{\partial h_a}{\partial X_J} \right)_{(qc)}\] Parameters:
sym (bool, optional) – Calculate the symmetric part of the gradient (default is False).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Gradient as partial derivative of field value components
i
at points w.r.t. the undeformed coordinatesj
, evaluated at the quadrature pointsq
of cellsc
in the region. Return type:
ndarray of shape (i, j, q, c)
 hess(dtype=None, out=None, order='C')#
Hessian as second partial derivative of field values w.r.t. undeformed coordinates, evaluated at the integration points of all cells in the region.
\[\left( \frac{\partial^2 u_i}{\partial X_J~\partial X_K} \right)_{(qc)} = \hat{u}_{ai} \left( \frac{\partial^2 h_a}{\partial X_J~\partial X_K} \right)_{(qc)}\] Parameters:
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Hessian as partial derivative of field value components
i
at points w.r.t. the undeformed coordinatesj
andk
, evaluated at the quadrature pointsq
of cellsc
in the region. Return type:
ndarray of shape (i, j, k, q, c)
 interpolate(dtype=None, out=None, order='C')#
Interpolate field values located at meshpoints to the quadrature points
q
of cellsc
in the region.\[u_{i(qc)} = \hat{u}_{ai}\ h_{a(qc)}\] Parameters:
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
order ({'C', 'F', 'A', 'K'}, optional) – Controls the memory layout of the output. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
Interpolated field value components
i
, evaluated at the quadrature pointsq
of each cellc
in the region. Return type:
ndarray of shape (i, q, c)
 class felupe.FieldsMixed(region, n=3, values=(0.0, 0.0, 1.0, 0.0), axisymmetric=False, planestrain=False, offset=0, npoints=None, mesh=None, **kwargs)[source]#
A container with multiple (mixed)
Fields
based on aRegion
. Parameters:
region (RegionHexahedron, RegionQuad, RegionQuadraticQuad, RegionBiQuadraticQuad, RegionQuadraticHexahedron, RegionTriQuadraticHexahedron, RegionQuadraticTetra, RegionQuadraticTriangle, RegionTetraMINI, RegionTriangleMINI or RegionLagrange) – A template region.
n (int, optional) – Number of fields where the first one is a vector field of mesh dimension and the following fields are scalarfields (default is 3).
values (tuple of float or tuple of ndarray, optional) – Initial field values (default is (0.0, 0.0, 1.0, 0.0)).
axisymmetric (bool, optional) – Flag to initiate a
FieldAxisymmetric
as the first field (default is False).planestrain (bool, optional) – Flag to initiate a
FieldPlaneStrain
as the first field (default is False).offset (int, optional) – Offset for cell connectivity of the dual mesh (default is 0).
npoints (int or None, optional) – Specified number of mesh points for the dual mesh (default is None).
mesh (Mesh or None, optional) – A mesh which is used for the dual region (default is None). If None, the mesh is taken from the region.
Notes
The dual region is chosen automatically, i.e. for a
RegionHexahedron
the dual region isRegionConstantHexahedron
. A total number ofn
fields are generated inside aFieldContainer
. For compatibility withThreeFieldVariation
, the third field is created with ones, all values of the other fields are initiated with zeros by default.See also
felupe.FieldContainer
A container which holds one or multiple (mixed) fields.
felupe.Field
Field on points of a
Region
with dimensiondim
and initial pointvalues
.felupe.FieldDual
A dual field on points of a
Region
with dimensiondim
and initial pointvalues
.felupe.FieldAxisymmetric
Axisymmetric field on points of a
Region
with dimensiondim
and initial pointvalues
.felupe.FieldPlaneStrain
Plane strain field on points of a
Region
with dimensiondim
and initial pointvalues
.felupe.mesh.dual
Create a dual
Mesh
.
 copy()#
Return a copy of the field.
 extract(grad=True, sym=False, add_identity=True, dtype=None, out=None, order='C')#
Generalized extraction method which evaluates either the gradient or the field values at the integration points of all cells in the region. Optionally, the symmetric part of the gradient is evaluated and/or the identity matrix is added to the gradient.
 Parameters:
grad (bool or list of bool, optional) – Flag(s) for gradient evaluation(s). A boolean value is appplied on the first field only and all other fields are extracted with
grad=False
. To enable or disable gradients perfield, use a list of boolean values instead (default is True).sym (bool, optional) – Flag for symmetric part if the gradient is evaluated (default is False).
add_identity (bool, optional) – Flag for the addition of the identity matrix if the gradient is evaluated (default is True).
dtype (datatype or None, optional) – If provided, forces the calculation to use the data type specified. Default is None.
out (None or ndarray, optional) – A location into which the result is stored. If provided, it must have a shape that the inputs broadcast to. If not provided or None, a freshly allocated array is returned (default is None).
orders (str or list of str, optional) – Controls the memory layout of the outputs. ‘C’ means it should be C contiguous. ‘F’ means it should be Fortran contiguous, ‘A’ means it should be ‘F’ if the inputs are all ‘F’, ‘C’ otherwise. ‘K’ means it should be as close to the layout as the inputs as is possible, including arbitrarily permuted axes. Default is ‘C’.
 Returns:
(Symmetric) gradient or interpolated field values evaluated at the integration points of each cell in the region.
 Return type:
tuple of ndarray
Notes
If the gradient is not requested, the interpolation method returns the field values evaluated at the numeric integration points
q
for each cellc
in the region (socalled trailing axes).\[u_{i(qc)} = \hat{u}_{ai}\ h_{a(qc)}\]On the other hand, the gradient method returns the gradient of the field values w.r.t. the undeformed mesh point coordinates, evaluated at the integration points of all cells in the region.
\[\left( \frac{\partial u_i}{\partial X_J} \right)_{(qc)} = \hat{u}_{ai} \left( \frac{\partial h_a}{\partial X_J} \right)_{(qc)}\]See also
felupe.Field.interpolate
Interpolate field values located at meshpoints to the quadrature points in the region.
felupe.Field.grad
Gradient as partial derivative of field values w.r.t. undeformed coordinates.
 imshow(*args, ax=None, dpi=None, **kwargs)#
Take a screenshot of the first field of the container, show the image data in a figure and return the ax.
 link(other_field)#
Link value array of other field.
 plot(*args, project=None, **kwargs)#
Plot the first field of the container.
See also
felupe.Scene.plot
Plot method of a scene.
felupe.project
Project given values at quadraturepoints to meshpoints.
felupe.topoints
Shift given values at quadraturepoints to meshpoints.
 screenshot(*args, filename='field.png', transparent_background=None, scale=None, **kwargs)#
Take a screenshot of the first field of the container.
See also
pyvista.Plotter.screenshot
Take a screenshot of a PyVista plotter.
 values()#
Return the field values.
 view(point_data=None, cell_data=None, cell_type=None, project=None)#
View the field with optional given dicts of point and celldata items.
 Parameters:
point_data (dict or None, optional) – Additional pointdata dict (default is None).
cell_data (dict or None, optional) – Additional celldata dict (default is None).
cell_type (pyvista.CellType or None, optional) – Celltype of PyVista (default is None).
project (callable or None, optional) – Project internal celldata at quadraturepoints to meshpoints (default is None).
 Returns:
A object which provides visualization methods for
felupe.FieldContainer
. Return type:
felupe.ViewField
See also
felupe.ViewField
Visualization methods for
felupe.FieldContainer
.felupe.project
Project given values at quadraturepoints to meshpoints.
felupe.topoints
Shift given values at quadraturepoints to meshpoints.
