Third Medium Contact

Frictionless contact method simulated by a third medium [1].

• create a mesh container with multiple meshes

• define multiple solid bodies and create a top-level field

• create an animation of the deformed solid

This contact method uses a third medium for two solid contact bodies with a a Hessian- based regularization [2]. First, let’s create sub meshes with quad cells for the solid body. All sub meshes are merged by stacking the meshes of the mesh container into a mesh.

import numpy as np

import felupe as fem

t = 0.1
L = 1
H = 0.5

nt, nL, nH = (2, 10, 4)

a = fem.Rectangle(a=(0, 0), b=(t, t), n=nt)
b = a.translate(move=H - t, axis=1)
c = fem.Rectangle(a=(t, 0), b=(L, t), n=(nL, nt))
d = c.translate(move=H - t, axis=1)
e = fem.Rectangle(a=(0, t), b=(t, H - t), n=(nt, nH))
body = fem.MeshContainer([a, b, c, d, e], merge=True).stack()

This is repeated for the medium, where two meshes are added to a mesh container. Extra cells are added on the right edge to improve convergence.

f = fem.Rectangle(a=(t, t), b=(L, H - t), n=(nL, nH))
g = fem.Rectangle(a=(L, 0), b=(L + t / (nt - 1), H), n=(2, 2 * (nt - 1) + nH))
medium = fem.MeshContainer([f, g], merge=True).stack()

Both stacked meshes are added to a top-level mesh container. For each mesh of the container, quad regions and plane-strain vector-fields for the displacements are created. The Neo-Hookean isotropic hyperelastic material formulation from the solid body is also used for the isotropic part of the background material but with scaled down material parameters.

G = 5 / 14
K = 5 / 3
kr = 1e-6
gamma0 = 1e-6

container = fem.MeshContainer([body, medium], merge=True, decimals=6)
regions = [fem.RegionQuad(m, hess=True) for m in container.meshes]
fields = [fem.FieldPlaneStrain(r, dim=2).as_container() for r in regions]
umats = [fem.NeoHooke(mu=G, bulk=K), fem.NeoHooke(mu=G * gamma0, bulk=K * gamma0)]
solids = [fem.SolidBody(umat, f) for umat, f in zip(umats, fields)]

A top-level plane-strain field is created on a stacked mesh. This field includes all unknowns and is required for the selection of prescribed degrees of freedom as well as for Newton’s method. The left end edge is fixed and the vertical displacement is prescribed on the outermost top-right point.

region = fem.RegionQuad(container.stack())
field = fem.FieldPlaneStrain(region, dim=2).as_container()

bounds = dict(
    fixed=fem.Boundary(field[0], fx=0),
    move=fem.Boundary(field[0], fx=L, fy=H, mode="and", skip=(1, 0)),
)

The so-called HuHu-regularization is created by two weak-forms, which are derived from the regularization potential, see Eq. (1) [3].

(1)\[\Pi = \frac{1}{2} \int_V \mathbb{H}(\boldsymbol{u})~\vdots~\mathbb{H}(\boldsymbol{u})~dV\]

from felupe.math import dddot, hess


@fem.Form(v=fields[1], u=fields[1], kwargs={"kr": 1.0})
def bilinearform():
    return [lambda v, u, kr: kr * dddot(hess(u), hess(v))]


@fem.Form(v=fields[1], kwargs={"kr": 1.0})
def linearform():
    u = fields[1][0]
    return [lambda v, kr: kr * dddot(hess(v), hess(u)[:2, :2, :2])]


regularization = fem.FormItem(
    bilinearform=bilinearform,
    linearform=linearform,
    kwargs={"kr": kr * K * L**2},
)

The prescribed displacement is ramped up to the maximum value and released until zero.

move = fem.math.linsteps([0, 1, 0], num=30)
step = fem.Step(
    items=[*solids, regularization],
    ramp={bounds["move"]: -0.4 * move * L},
    boundaries=bounds,
)

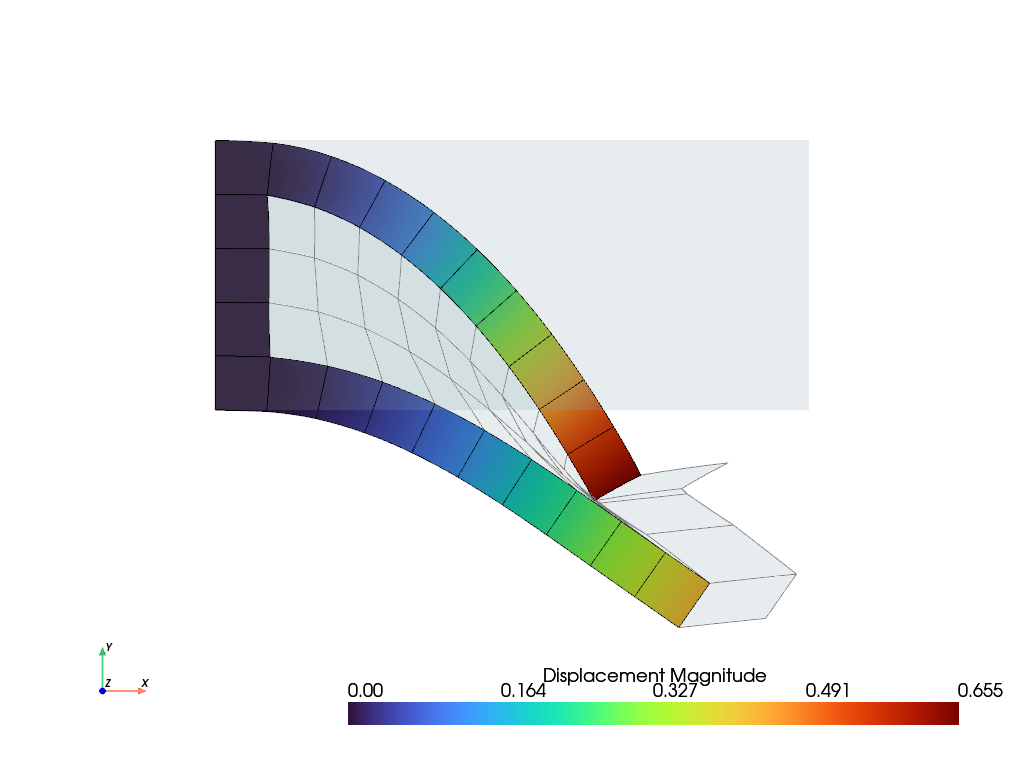

The deformation is captured in a GIF-file. The top-level field has to be passed as the x0-argument for Newton's method, which is called on evaluation. After all frames are recorded, it is important to close() the plotter.

plotter = container.plot(colors=["grey", "white"], line_width=3, off_screen=True)
plotter.open_gif("third-medium-contact.gif", fps=5)


def record(stepnumber, substepnumber, substep, plotter):
    "Update the mesh of the plotter and write a frame."
    if substepnumber in np.arange(len(move), step=5):
        for m in plotter.meshes:
            m.points[:, :2] = region.mesh.points + field[0].values
        plotter.write_frame()


job = fem.Job([step], callback=record, plotter=plotter)
job.evaluate(x0=field)

plotter.close()

References

[1]

https://en.wikipedia.org/wiki/Third_medium_contact_method

[2]

G. L. Bluhm, O. Sigmund, and K. Poulios, “Internal contact modeling for finite strain topology optimization”, Computational Mechanics, vol. 67, no. 4. Springer Science and Business Media LLC, pp. 1099–1114, Mar. 04, 2021. .

[3]

A. H. Frederiksen, O. Sigmund, and K. Poulios, “Topology optimization of self- contacting structures”, Computational Mechanics, vol. 73, no. 4. Springer Science and Business Media LLC, pp. 967–981, Oct. 07, 2023. .
